2024 Superior Conveyor - Transfer 36X70STSS-TRL
Fields with asterisks * are required.
Print This Page
Description

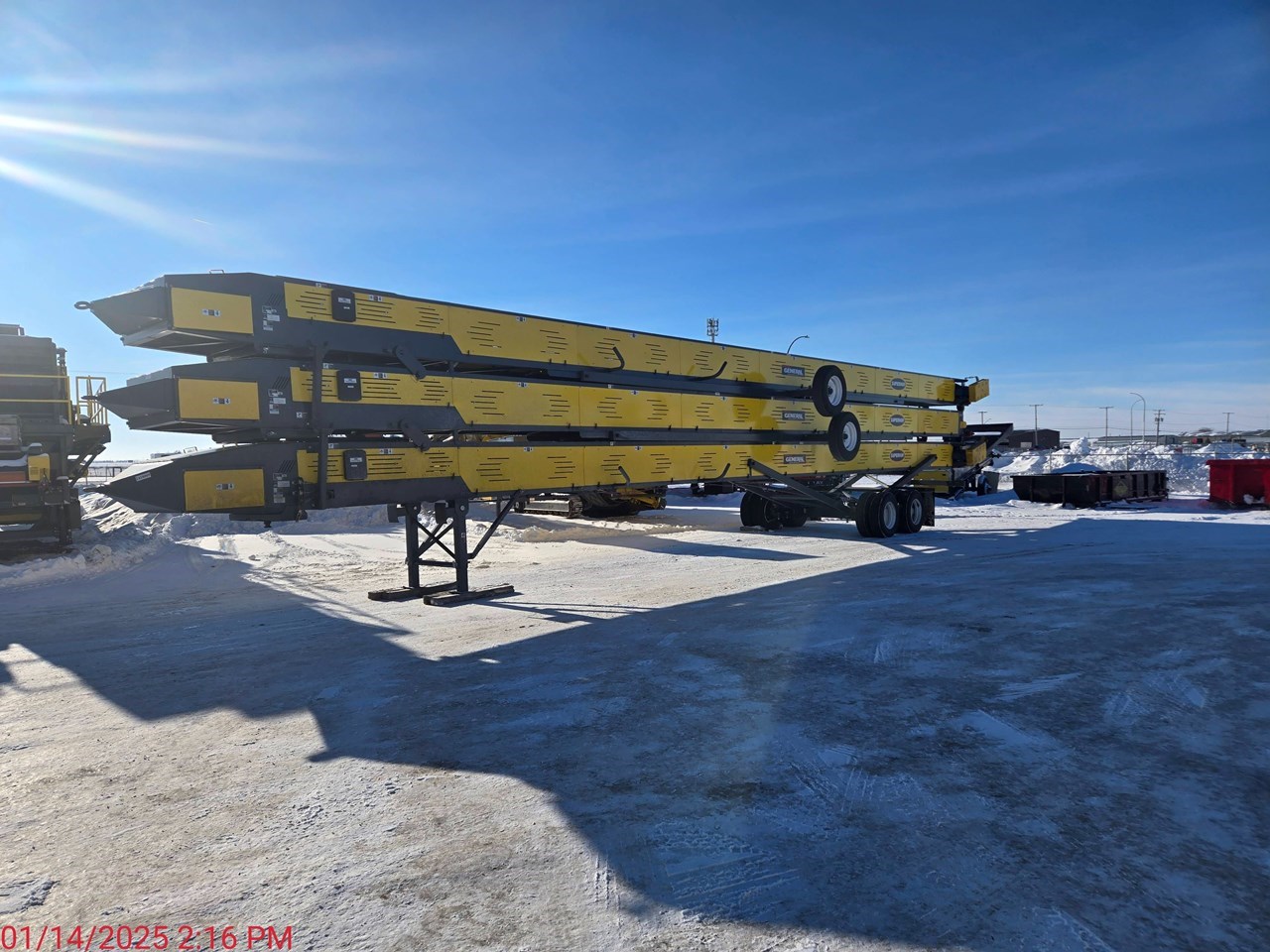

SLIDE STAC CONVEYOR SYSTEM
Inventory ID
U00006279

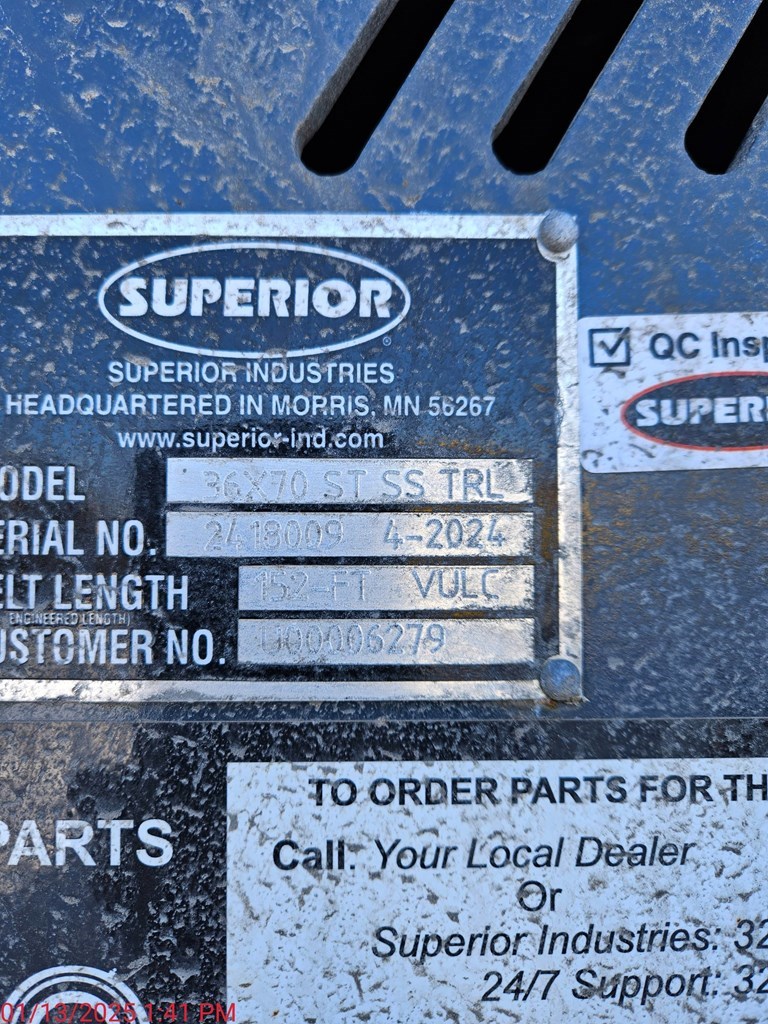

Serial
2418009
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: U00006279
- Status: On Rent
- Make: Superior
- Model: 36X70STSS-TRL
- Year: 2024
- Serial#: 2418009
Notes
- SUPERIOR 36" X 70- SLIDE STAC SYSTEM
- CONVEYOR FRAME - NO TOP CROSS LATTICES:
- TRAILER UNIT
- MAIN FRAME: 30" DEEP TRUSS
- CHORD ANGLES: 4" X 4" X 5/16"
- LATTICE MEMBERS: 2" X 2" 3/16" - MIDDLE UNIT AND TOP UNIT:
- MAIN FRAME: 30DEEP TRUSS
- CHORD ANGLES: 4" X 4" X 5/16"
- LATTICE MEMBERS: 2" X 2" X 3/16"
- ROLLER ASSEMBLY: SINGLE SET ON HEAD END FOR EASY LOADING AND UNLOADING - DRIVE SPECIFICATIONS:
- DRIVES: CLASS I HEAD END
- GEAR REDUCERS: SHAFT MOUNT
- BACKSTOPS: INSTALLED IN REDUCER
- MOTORS: 25 HP TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 750 STPH OF 100 PCF MATERIALS 25 DEGREE SURCHARGE (90% FINES 10%
SPEHERICAL LUMPS 7" MINUS)
- BELT SPEED: 400 FPM
- DRIVE PULLEYS: 18" DIAMETER 3/8" HERRINGBONE LAGGED DRUM
- TAIL PULLEYS: 14" DIAMETER CEMA CHEVRON PULLEY
- SHAFTS: TURNED AND POLISHED
- BEARINGS: INCLUDED
- TAKE UPS: SCREW TYPE - PORTABLILITY:
- CONVEYOR SPLICE: ONE PIECE FRAME
- TOWING EYE: PINTLE TYPE HITCH
TRAILER UNIT:
- V-TYPE AXLE: ADJUSTABLE TO 18 DEG. TELESCOPING AXLES WITH SWIVEL BOXES AND
(8) 11R22.5 RADIAL TIRES
- SUPPORT LEGS: ADJUSTABLE HEIGHT FOLDING LEGS
- FIFTH WHEEL: ON TRAILER UNIT
- BRAKES: COMPLETE AIR SYSTEM
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUDFLAPS: INSTALLED BEHIND TRANSPORT WHEELS
- V-TYLE AXLE: ADJUSTABLE TO 18 DEG SWIVELING SINGLE 11-22.5 AG WHEELS AND
TIRES
- FOLD DOWN LEGS: FOLD DOWN LEGS FOR MID AND TOPUNIT - CONVEYOR COMPONENTS:
- BELTING: 3 PLY 3/16 X 1/16 330 PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICES
- BELT SCRAPER: SUPERIOR EXTERRA PRIMARY
- SUPERIOR IDLERS: CEMA C 5" DIA. ROLLS SEALED FOR LIFE BALL BEARINGS
- MOUNTING: RECESSED INSIDE FRAME
- IDLER SEAL - SUPERIOR STANDARD SPINGUARD SEAL
- LOAD AREA: 20 DEGREE TROUGH 16" SPACING
- TROUGH: 35 DEGREE ON 4- SPACING
- RETURNS: URETHANE RETURN 12›¼À SPACING
- SKIRTING EXTENSION: 5- LONG 10" HIGH HINGED WITH 1" ROUND BAR FOR MATERIAL
SHELF
- GATHERING TROUGH: 5- LONG WITH ADJUSTABLE RUBBER FLASHING - ADDITIONAL SPECIFICATIONS:
- POWER SUPPLY: 480V/3PH/60HZ
- PAINT: GRAPHITE GRAY WITH YELLOW GUARDING
- OWNERS MANUAL: 1 COPY INCLUDED FOR OPERATION MAINTENANCE AND PARTS
- ELECTRICAL: ELECTRICAL SWITCHGEAR AND 333- OF MAIN POWER CORD ON EACH
CONVEYOR
-SIGN PLATE - GENERAL SIGN PLATE INCLUDED
-VOLTAGE - 480 V / 3 PH / 60 HZ
-CORD HOLDERS - (1) SET BENT PIPE STYLE
-CONTROL PANEL PLATE ›¼À“ NOT INCLUDED
-CONTROL PANEL - CONTROL PANEL AND WIRING NOT INCLUDED
-GUARD PAINT ›¼À“ SAFETY YELLOW
-IDLER PAINT - POWDER COATED SUPERIOR ORANGE
- GUARDING: FOR DRIVE AND TAIL PULLEYS V-BELT DRIVEAND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODED END USER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED.
-SWIVEL BOX - (TRL) ADJUSTABLE TO 18›¼° TELESCOPING AXLE WITH SWIVEL BOXES WITH (8) 11R-22.5 RADIAL TIRES
-FOLD DOWN LEGS - FOLD DOWN LEGS FOR MID AND TOP UNIT
-BELT UPGRADE - 3-PLY 3/16 X 1/16 330PIW
-VULCANIZED BELT SPLICE - FACTORY VULCANIZED BELT SPLICE
-PRIMARY SCRAPER - SUPERIOR EXTERRA›¼® PRIMARY BELT SCRAPER
-CEMA C IDLERS - CEMA C 5" DIA. STEEL ROLLS SEALED FOR LIFE BALL BEARINGS
