2023 Superior Conveyor - Stacking 30X95PRSC
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR

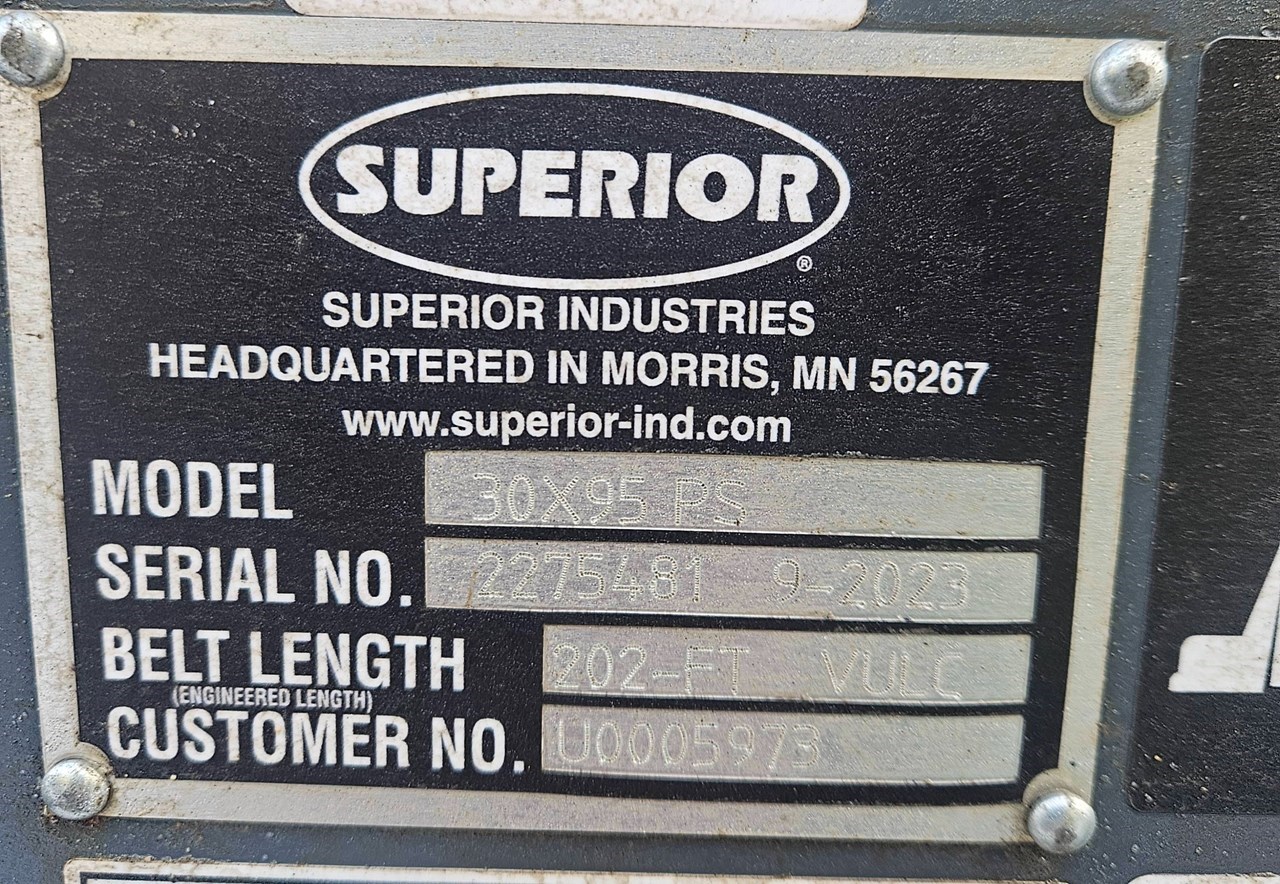

Inventory ID
U00005973
Serial
2275481
Machine Location
Details
- Inventory ID: U00005973
- Status: On Yard
- Make: Superior
- Model: 30X95PRSC
- Year: 2023
- Serial#: 2275481
Notes

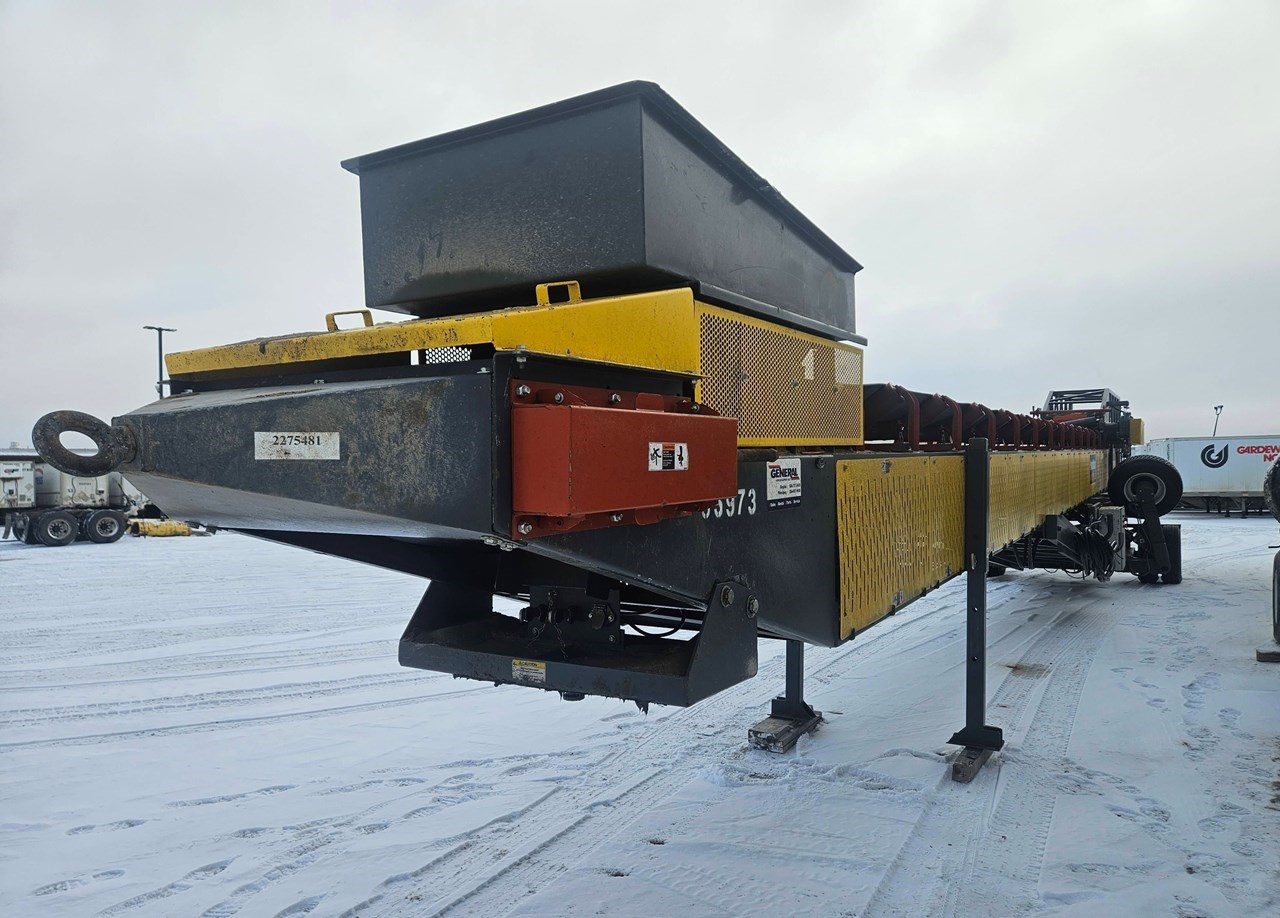

- SUPERIOR 30›¼À X 95›¼À™ PORTABLE RADIAL STACKING CONVEYOR EQUIPPED AS PER BELOW:
- CONVEYOR FRAME:
- MAIN FRAME ›¼À“ 30›¼À DEEP TRUSS
- CHORD ANGLES ›¼À“ 3›¼À X 3›¼À X 1/4"
- LATTICE MEMBERS ›¼À“ 1-1/2›¼À X 1-1/2›¼À X 3/16›¼À
-CONTAINERIZED ›¼À“ NOT INCLUDED - DRIVE SPECIFICATIONS:
- DRIVE ›¼À“ CLASS I HEAD DRIVE
- GEAR REDUCER ›¼À“ SHAFT MOUNT
- BACKSTOP ›¼À“ INSTALLED IN REDUCER
- MOTOR ›¼À“ 25 HP TEFC
- V-BELT DRIVE ›¼À“ WITH DRIVE GUARD
- CAPACITY ›¼À“500 STPH OF 100 PCF MATERIAL 25 DEGREES SURCHARGE (90% FINES 10% - SPHERICAL LUMPS 5›¼À MINUS)
- BELT SPEED ›¼À“ 400 FPM
- DRIVE PULLEY ›¼À“ 18›¼À DIAMETER 3/8›¼À HERRINGBONE LAGGED DRUM
- TAIL PULLEY ›¼À“ 16›¼À DIAMETER CEMA CHEVRON WING
- SHAFTS ›¼À“ TURNED AND POLISHED
- BEARINGS ›¼À“ INCLUDED
- TAKE-UP ›¼À“ SCREWTYPE - PORTABILITY:
- CONVEYOR SPLICE ›¼À“ HYDRAULIC TOP FOLDING HEAD SECTION WITH INTEGRAL BELT
KEEPER
- UNDERCARRIAGE ›¼À“ HYDRAULIC RAISE WITH 7.5 HP ELECTRIC PUMPING UNIT
- AXLE TYPE ›¼À“ FD15 AXLE
- TRANSPORT AXLE ›¼À“ (4) 11R-22.5 TRANSPORT TIRES WITH BRAKES AND MUD FLAPS
- RADIAL AXLE ›¼À“ (2) 385/65D-19.5 TIRES ON HYDRAULIC OUTRIGGERS POWER TRAVEL
(REQUIRES HYD. RAISE)
- RADIAL TRAVEL ›¼À“ PLEASE REVIEW AXLE OPTIONS
- FIFTH WHEEL ›¼À“ FOR ROAD TRAVEL BOLT ON DESIGN
- ANCHOR PIVOT ›¼À“ MAINTAINS TAIL END DURING RADIAL TRAVEL
- BRAKES ›¼À“ COMPLETE AIR BRAKE PACKAGE
- LIGHTS ›¼À“ PLEASE REVIEW LIGHT OPTIONS
- MUD FLAPS ›¼À“ PLEASE REVIEW MUD FLAP OPTIONS
- AXLE JACKS ›¼À“ NOT APPLICABLE
- LANDING GEAR ›¼À“ MANUAL PIN ADJUSTMENT
- TOWING EYE ›¼À“ PINTLE HITCH TYPE - CONVEYOR COMPONENTS:
- BELTING ›¼À“ 3-PLY 3/16 X 1/16 330PIW
- BELT SPLICE ›¼À“ FACTORY VULCANIZED BELT SPLICE
- SCRAPERS ›¼À“ SUPERIOR EXTERRA PRIMARY BELT SCRAPER
- IDLERS ›¼À“ CEMA C 5›¼À DIA. STEEL ROLLS SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL ›¼À“ SUPERIOR STANDARD SPINGUARD SEAL
- LOAD AREA ›¼À“ 20 DEGREES TROUGH 12-16›¼À SPACING
- TROUGH ›¼À“ 35 DEGREES ON 4›¼À™ SPACING
- RETURNS ›¼À“ STEEL CANS ON 10›¼À™ SPACING
- RADIAL HOPPER ›¼À“ ROCK BOX
- RADIAL HOPPER LINER ›¼À“ NOT INCLUDED
- GATHERING TROUGH ›¼À“5›¼À™LONG WITH ADJUSTABLE RUBBER FLASHING - ADDITIONAL SPECIFICATIONS:
- GUARDING ›¼À“ FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
- FULL LENGTH GUARDING ›¼À“ FULL LENGTH GUARDING PAINTED SAFETY YELLOW
- VOLTAGE ›¼À“ 480 V / 3 PH / 60 HZ
- CORD HOLDERS ›¼À“ (1) SET BENT PIPE STYLE
- CONTROL PANEL PLATE ›¼À“ NOT INCLUDED
- CONTROL PANEL ›¼À“ CONTROL PANEL ANDWIRING NOT INCLUDED
- PAINT ›¼À“ 1 COAT PRIMER 1 COAT FINISH ENAMEL GRAPHITE GRAY
- GUARD PAINT ›¼À“ SAFETY YELLOW
- IDLER PAINT ›¼À“ POWDER COATED SUPERIOR ORANGE
- 250- 4/4SOW POWER CABLE
