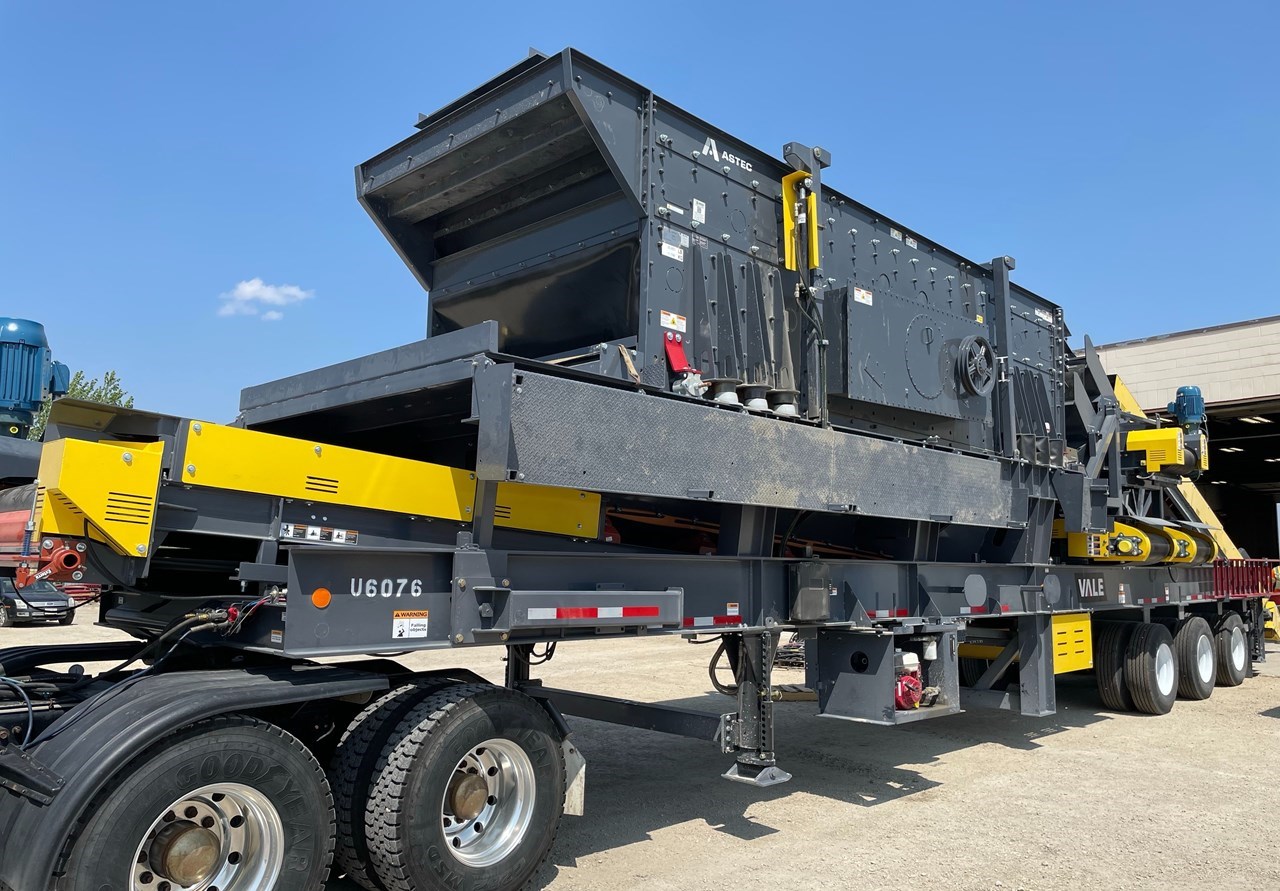

2023 Other Screening Plant 7203-38OF
Fields with asterisks * are required.
Print This Page
Description
SCREEN PLANT W/ OVERHEAD FEED CONVEYOR
Inventory ID
U00006076
Serial
23V0090
Machine Location
Details
- Inventory ID: U00006076
- Status: On Yard
- Make: Other
- Model: 7203-38OF
- Year: 2023
- Serial#: 23V0090
Notes
- 7203 OVERHEAD FEED PLANT EQUIPPED PER THE BELOW:
- PLANT DESIGN:
- CARRIES JCI OR TEREX 2.5 7203-38LP HORIZONTAL SCREEN OR 2.5 DEGREE
- SCREEN SUPPLIED WITH ITS BASE FRAME AND MOTOR MOUNT - PLANT STRUCTURE AND HIGHWAY TRANSPORT:
- MAINI BEAMS AND PRIMARY CROSS MEMBERS
- SCREEN BASE FRAME WELD-MOUNTED TO CHASSIS SUPPORT POINTS
- MOTOR FRAME KNEE BRACES
- 2 SWING DOWN LEG KING PIN END
- TRIDEM AXLE WITH DUAL 11R22.5 RETREAD TIRES SPRING SUSPENSION
- NEW SAILUNE TIRES
- 5TH WHEEL PIN AND TOWING BAR
- AIR BRAKES LIGHTS REFLECTIVE TAPE MUD FLAPS
- TOOLBOX OPTION - HYDRAULICS:
HPU HONDA GAS ENGINE
- HONDA GX270 QAE 9HP W/ ELECTRIC START BACKUP RECOIL 3A CHARGE SYSTEM
- 10›¼ÀGALLON RESERVOIR HOSE FITTINGS
RUN›¼ÀON LEGS (4)
- 58 900 LBS 5X18 RUN›¼ÀON LEGS
- DUAL COUNTERBALANCE VALVE HARD PIPED
- LOCKING PIN W/ FINE ADJUSTMENT
- INDIVIDUAL VALVE CONTROL POWERED BY HYDRAULIC PACKAGE
VALVE BLOCK CYLINDERS HOSES AND FITTINGS
- 6 VALVE BLOCK FOR INDIVIDUAL OPERATION OF 4 LEVELING CYLINDERS 3 OVERHEAD FEED
CYLINDERS
- 2 HYDRAULIC CYLINDERS OVERHEAD FEED HEAD END FOR TRANSPORT/OPERATION
POSITIONS.
- 1 HYDRAULIC CYLINDER OVERHEAD FEED TAIL END FORTRANSPORT/OPERATION POSITIONS.
- ALL FITTINGS AND HOSES
OVERHEAD FEED CONVEYOR 42›¼À X 51›¼À™
- 330›¼À3 PLY 3/16X1/16 D1 BELT VULCANIZED
- S›¼ÀDRIVE ARRANGEMENT
- 14 NON›¼ÀDRIVE HEAD PULLEY 1045 SHAFTING 215 SCM BEARING UNITS - OVERHEAD FEED CONVEYOR 42›¼ÀX 51-:
- 330-3 PLY 3/16X1/16 D1 BELT VULCANIZED
- S-DRIVE ARRANGEMENT
- 14 NON-DRIVE HEAD PULLEY 1045 SHAFTING 215 SCM BEARING UNITS
- 12 WING TAIL PULLEY WITH SCREW TAKE-UP 1045 SHAFTING 215 SCM BEARING UNITS
GUARDED
- 14 DRIVE PULLEY 3/8 LAGGED 1045 SHAFTING 215 SCM BEARING UNITS
- 14 BEND PULLEY 1045 SHAFTING 215 SCM BEARING UNITS
- 25 HP WEG ELECTRIC MOTOR DRIVE
- DODGE TA4207H25 REDUCER WITH BACKSTOP AND BX V-BELT DRIVE GUARDED
- PPI C5 20 DEGREE CHANNEL INSET TROUGH IDLERS AND FLAT RUBBER DISC RETURNS
- 1-6 LOAD ZONE 3›¼À™ CARRY 10›¼À™ RETURN SPACING
- IMPACT IDLERS (4) LOAD ZONE
- BELT CLEANER 1›¼À RUBBER BLADE AND MOUNT
- LOAD POINT WITH CLAMP-ADJUSTED SKIRT RUBBER
- INCLINE SECTION SKIRT AND RUBBER FLASHING WITH GUARD BOLT-IN PAST CURVE
- TUBE-IN-TUBE HEAD SUPPORT LEGS
- HEAD END HYDRAULIC RAISE AND LOWER FOR OPERATION AND TRANSPORT POSITIONS
- HYDRAULIC CYLINDERS HOSE & FITTING PACKAGE
- TUBE-IN-TUBE TAIL SUPPORT LEGS
- TAIL END HYDRAULIC RAISE AND LOWER FOR OPERATION AND TRANSPORT POSITIONS
- HYDRAULIC CYLINDERS HOSE & FITTING PACKAGE
- C CHANNEL FRAME WITH ADDED REINFORCEMENT
- 12 WING TAIL PULLEY WITH SCREW TAKE›¼ÀUP 1045 SHAFTING 215 SCM BEARING UNITS
GUARDED
- 14 DRIVE PULLEY 3/8 LAGGED 1045 SHAFTING 215 SCM BEARING UNITS
- 14 BEND HERRINGBONE WING PULLEY 1045 SHAFTING 215 SCM BEARING UNITS
25 HP WEG ELECTRICMOTOR DRIVE
- DODGE MTA TA4207H25 RIGHT ANGLE DRIVE WITH BACKSTOP
PPI C5 20›¼° CHANNEL INSET TROUGH IDLERS AND FLAT RUBBER DISC RETURNS
- 35›¼° ON INCLINE 20›¼° ABOVE SCREEN
- 1›¼À™›¼À6›¼À LOAD ZONE 3›¼À™ CARRY 10›¼À™ RETURN SPACING
- IMPACT IDLERS (4) LOAD ZONE
- BELT CLEANER 1›¼À RUBBER BLADE AND MOUNT - - LOAD POINT WITH CLAMP ADJUSTED SKIRT RUBBER
- INCLINE SECTION SKIRT AND RUBBER FLASHING WITH GUARD BOLT›¼ÀIN PAST CURVE
- TUBE›¼ÀIN›¼ÀTUBE HEAD SUPPORT LEGS
- TUBE›¼ÀIN›¼ÀTUBE TAIL SUPPORT LEGS
- SPILL CURTAIN HEAD END
- EXTENDED STRUCTURE WITH RUBBER DRAPE TO STOP MATERIAL FROM GOING OVER FEED END - SCREEN ADDITIONS
- COMBINED TOP AND MID DECK LIPS WITH BOLT IN AR400 LINER
- LAYOUT TO MATCH CROSS CONVEYOR ARRANGEMENT
- SCREEN BASE FRAME BY VALE - SCREEN DISCHARGE FRAME & CHUTES BLEND GATE ARRANGEMENT
- BLEND GATE ARRANGEMENT WITH WELD IN 1/4AR400 WEAR LINER
- BOLT›¼ÀIN DIVERTER PANELS FOR BLENDING DIRECTION CHANGES
- 50/50 TOP ›¼À“ 25/25/25/25 BOTTOM
- SUPPORTS FOR 3 CROSS CONVEYORS WITH SLIDE CAPABILITY - CROSS CONVEYORS (3) 30›¼À X 12›¼À™5›¼À STANDARD OVERALL LENGTH
- 330›¼À3 PLY 3/16X1/16 D1 BELT VULCANIZED
- 10 HEAD DRUM PULLEY 3/8 LAGGED 1045 SHAFTING 203 SCM BEARING UNITS GUARDED
- 10 WING TAIL PULLEY WITH SCREW TAKE›¼ÀUP 1045 SHAFTING 203 SCM BEARING UNITS
GUARDED
- 7.5HP WEG ELECTRIC MOTOR DRIVE
- DODGE MTA 2115H15 RIGHT ANGLE DRIVE
- PPIB4 20›¼° CHANNEL INSET TROUGH IDLERS AND FLAT RUBBER DISC RETURN IMPACTS
FOR TOP CROSS
- 1›¼À™›¼À6›¼À TROUGH SPACING 1 RETURN
- BELT CLEANER 1›¼À RUBBER BLADE - - C CHANNEL FRAME CARTRIDGE REVERSIBLE AND SLIDE›¼ÀABLE 11›¼À™›¼À6›¼À STANDARD OVERALL
LENGTH
- CONVEYOR SKIRTS WITH CLAMP ADJUSTED RED GUM RUBBER FLASHING - UNDER SCREEN HOPPER
- ›¼¼›¼À PLATE HOPPER WITH SLOPED SIDEWALLS
- CLAMP›¼ÀADJUSTED SKIRT RUBBER SIDES AND BACK
- ALLOWANCE FOR3620RC REJECT CONVEYOR MOUNTING - UNDER SCREEN CONVEYOR 60›¼À X 23›¼À™
- 330›¼À3 PLY 3/16X1/16 D1 BELT VULCANIZED
- 12 HEAD DRUM PULLEY 3/8 LAGGED 1045 SHAFTING 215 SCM BEARING UNITS GUARDED
- 12 WING TAIL PULLEY WITH SCREW TAKE›¼ÀUP 1045 SHAFTING 215 SCM BEARING UNITS
GUARDED
- 20 HP WEG ELECTRIC MOTOR DRIVE
- DODGE MTA TA4207H25 RIGHT ANGLE DRIVE WITH BACKSTOP
- PPI C5 20›¼° CHANNEL INSET TROUGH IDLERS AND FLAT RUBBER DISC RETURNS
- 3›¼À™ CARRY 10›¼À™ RETURN SPACING
- SUPERIOR BELT CLEANER URETHANE BLADE AND TENSIONER
- C CHANNEL FRAME CARTRIDGE MAINTENANCE REMOVABLE - PLATFORM HANDRAIL LADDER
- BASE SCOPE INCLUDES 2›¼À™ WIDE PLATFORM ON 2 SIDES AND AT BACK OF SCREEN
- 1 LADDER WITH SAFETY GATE ACCESS
- LOCAL PLATFORM OVER SCREEN DRIVE MOTOR
STANDARD DESIGN
- CHECKER PLATE PLATFORM WITH 6›¼À KICK PLATES
- 42›¼À HSS 1.5›¼À HANDRAIL WITH MID›¼ÀRAIL AND POSTS REMOVABLE - URETHANE PREMIUM COATING GRAPHITE GREY SAFETY YELLOW
OWNER›¼À™S MANUAL AND PARTS LIST
NOTE: IT IS THE END USER›¼À™S RESPONSIBILITY TO ENSURE SAFETY AND GUARDING MEET LOCAL REGULATIONS - OPTIONS:
SCREEN MOTOR 50HP
- WEG 50HP 1200 RPM 460V TEFC T FRAME W22 NEMA PREMIUM SEVERE DUTY
NEW TIRE SAILUNE
- 11R22.5 S668 14/PLY SAILUN
NEW TIRE FIRESTONE
- 11R22.5 16/PLY FIRESTONE
TOOL BOX 36›¼ÀX18›¼ÀX18›¼À
