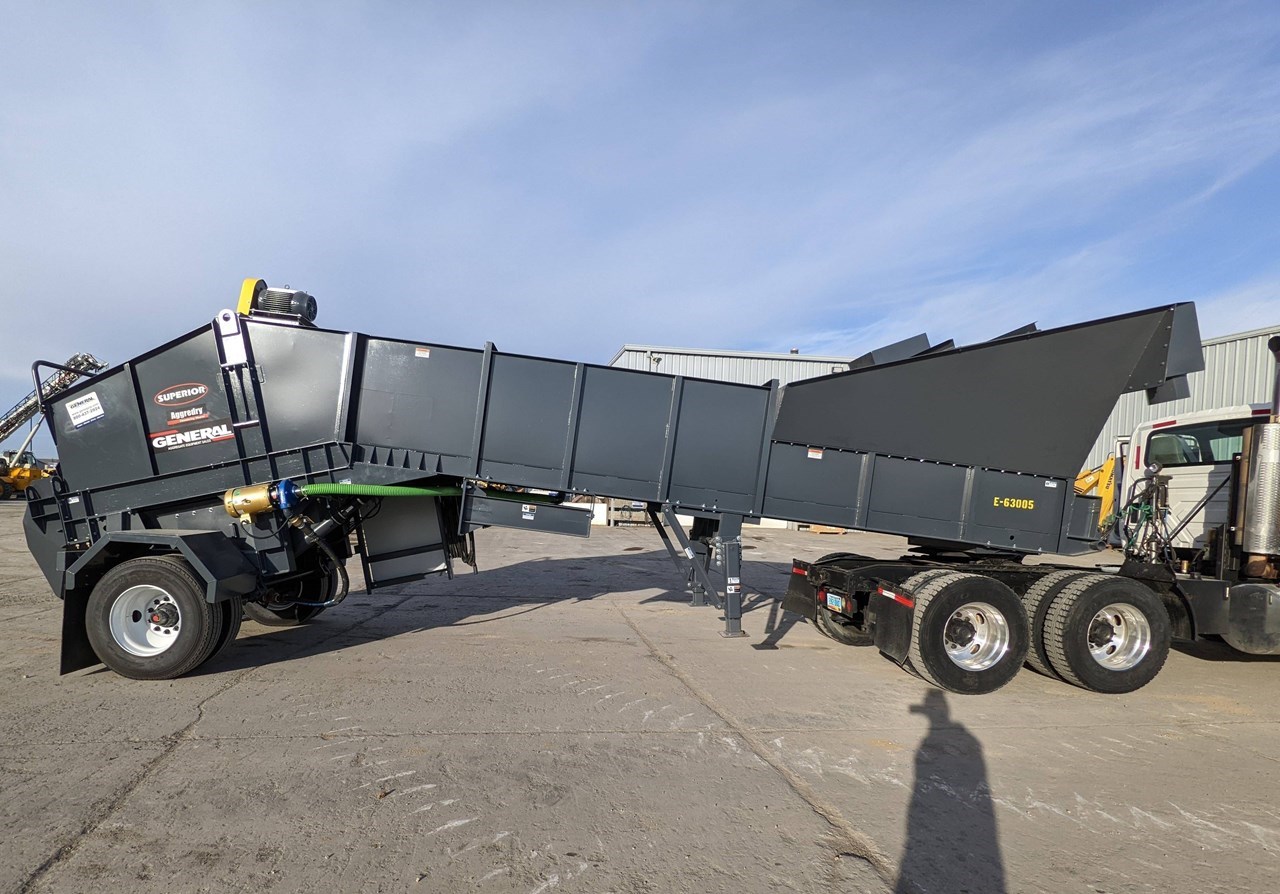

2022 Superior Washing Equipment 36" AGGRE-DRY WASHER
Fields with asterisks * are required.
Print This Page
Description
36" PORTABLE AGGRE-DRY WASHER
Inventory ID
U00006157
Serial
2156049
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: U00006157
- Status: On Rent
- Make: Superior
- Model: 36" AGGRE-DRY WASHER
- Year: 2022

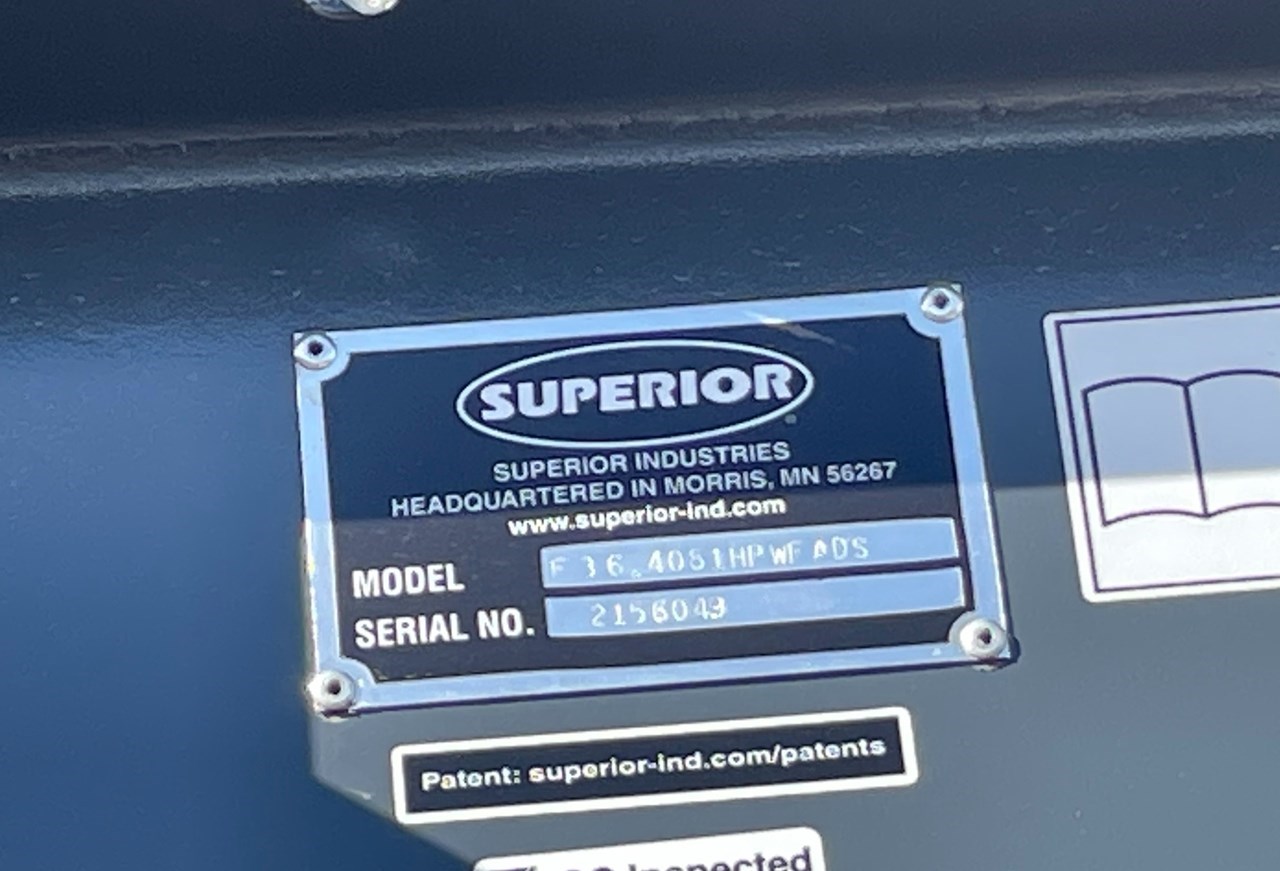

- Serial#: 2156049
Notes
- SUPERIOR 36" AGGREDRY DEWATERING WASHER EQUIPPED AS PER BELOW:
- WASHER SPECIFICATIONS:
- SIZE: 36"
- SCREW SPEED %: 100
- SCREW RPM: 20 RPM
- CAPACITY: 100 STPH (90 MTPH)
- CONSTRUCTION: 1/4" (6.35MM) ASTM A36STEEL
- BEARINGS: OUTBOARD PILLOW BLOCK
- WEAR SHOES: CAST
- SUPPORTS: FRONT END SUPPORTS
- FLUME: OVER-FLOW FLUME WITH ADJUSTABLE WEIR
- DISCHARGE CHUTE: MATERIAL DISCHARGE CHUTE
- SAFETY COVER: NOT INCLUDED
- SHAFT: SPIRAL TYPE HALF PITCH FLIGHTED FOR HIGH CAPACITY WITH ADJUSTABLE
MOUNTS
- ALSO INCLUDES: FEED HOPPER AND TUB BAFFLE - DRIVE SPECIFICATIONS:
- WASHER MOTOR: 15 HP
- SCREEN MOTOR: (2) 7 HP
- VOLTAGE: 230/480V/3PH/60HZ
- V-BELT: DRIVE GUARD
- GEAR BOX: DODGE SHAFT MOUNT - SCREEN DECK SPECIFICATIONS:
- SIZE: 4- X 8-
- SCREEN CONSTRUCTION: SINGLE-MEMBER WELDMENT UTILIZING HEAVY PIPE CROSS MEMBERS
FOR A BASE WHICH SUPPORTS REINFORCED STEEL U-CHANNELS
- FRAME CONSTRUCTION: 1/4" ASTM A36 STEEL
- SPRINGS: HEAVY STEEL COMPRESSION SPRINGS
- SCREEN: 1- X 2- REPLACEABLE URETHANE .3MM APERTURE SNAP-DECK
- SIDE LINER MEDIA: 2- REPLACEABLE MAGNETIC INJECTION MODLED LINERS WITH .5MM
APERTURES
- RECIRCULATING-TROUGH: SUPERIOR PATENTED FINES RECOVER RETURN SYSTEM
- BOOSTER PUMP: 10 HP BOOSTER PUMP INCLUDING 2" BALL VALVE TO INCREASE AND
CONTROL FINES JET DISCHARGE PRESSURE - OPTIONS INCLUDED:
- WEAR SHOES: CAST
- BOOSTER PUMP: SUPERIOR SUPPLIED AND INSTALLED BOOSTERPUMP FOR FINES RECOVERY
DISCHARGE PRESSURE
- TRANSPORT WHEELS: PORTABLE TRANSPORT WHEELS INCLUDES BRAKES LIGHTS 5TH
WHEEL. TO BE TRANSPORTED LONG DISTANCES USE OF TRAILER RECOMMENDED.
- LANDING GEAR: MANUAL CRANK-DOWN
- PAINTED SUPERIOR GRAPHITE GREY WITH YELLOW GUARDING - ELECTRICAL SWITCHGEAR - TRAVELS ON PLANT.
- AES ELECTRICAL SWITCHGEAR EQUIPPED AS PER BELOW:
- 48X36 BACK PANEL AND ENCLOSURE
- 70 AMP MAIN BREAKER WITH OPERATOR
- BUTTONS LOCATED IN PANEL DOOR
- E-STOP
- SAFETY HORN
- 400 WATT PANEL HEATER
- 15 HP SCREW
- 40 AMP BREAKER
- ACS850 VFD
- 8 HP SCREEN MOTOR #1
- 25 AMP BREAKER
- SIZE 1 MOTOR STARTER
- 8 HP SCREEN MOTOR #2
- 25 AMP BREAKER
- SIZE 1 MOTOR STARTER
- 7.5 HP BOOST PUMP
- 20 AMP BREAKER
- SIZE 1 MOTOR STARTER
- 1 KVA TRANSFORMER
- 2 AMP FUSES FOR PRIMARY
- 8 AMP FUSES FOR SECONDARY
- 100- OF MAIN POWER CORD - - GUARDING - WE DO NOT WARRANT THAT OUR GUARDS WILLMEET ALL
LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE THEM
CHECKED BY A LOCAL INSPECTOR
