2022 Other 3618FD Feeder For Sale Stock U00005841

2022 Other 3618FD Feeder For Sale

Interested in this machine? Send us a message

Fields with asterisks * are required

PriceWatch

Subscribe to be notified of price changes on this item.

2022 Other Feeder 3618FD

Fields with asterisks * are required.
Print This Page
Description

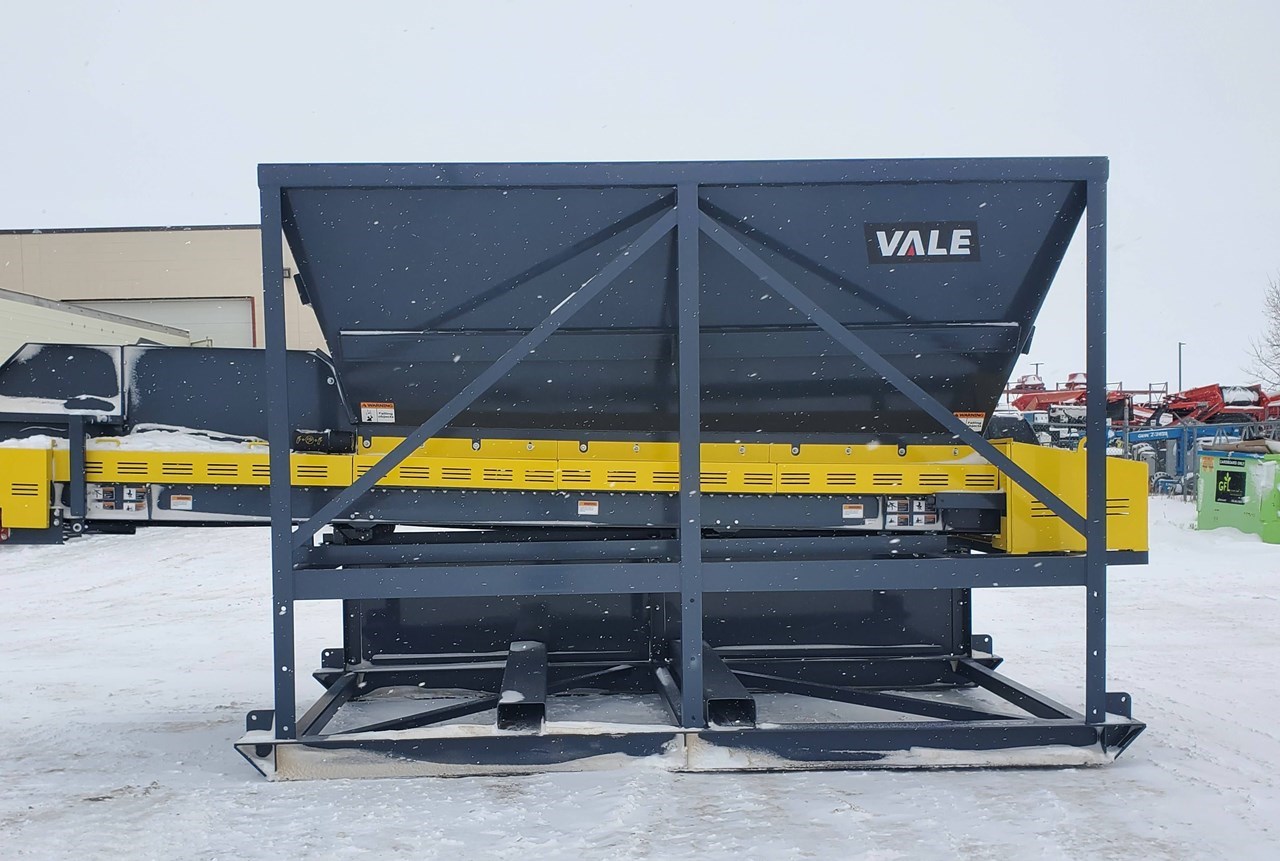

VALE SKID MOUNTED FEEDER

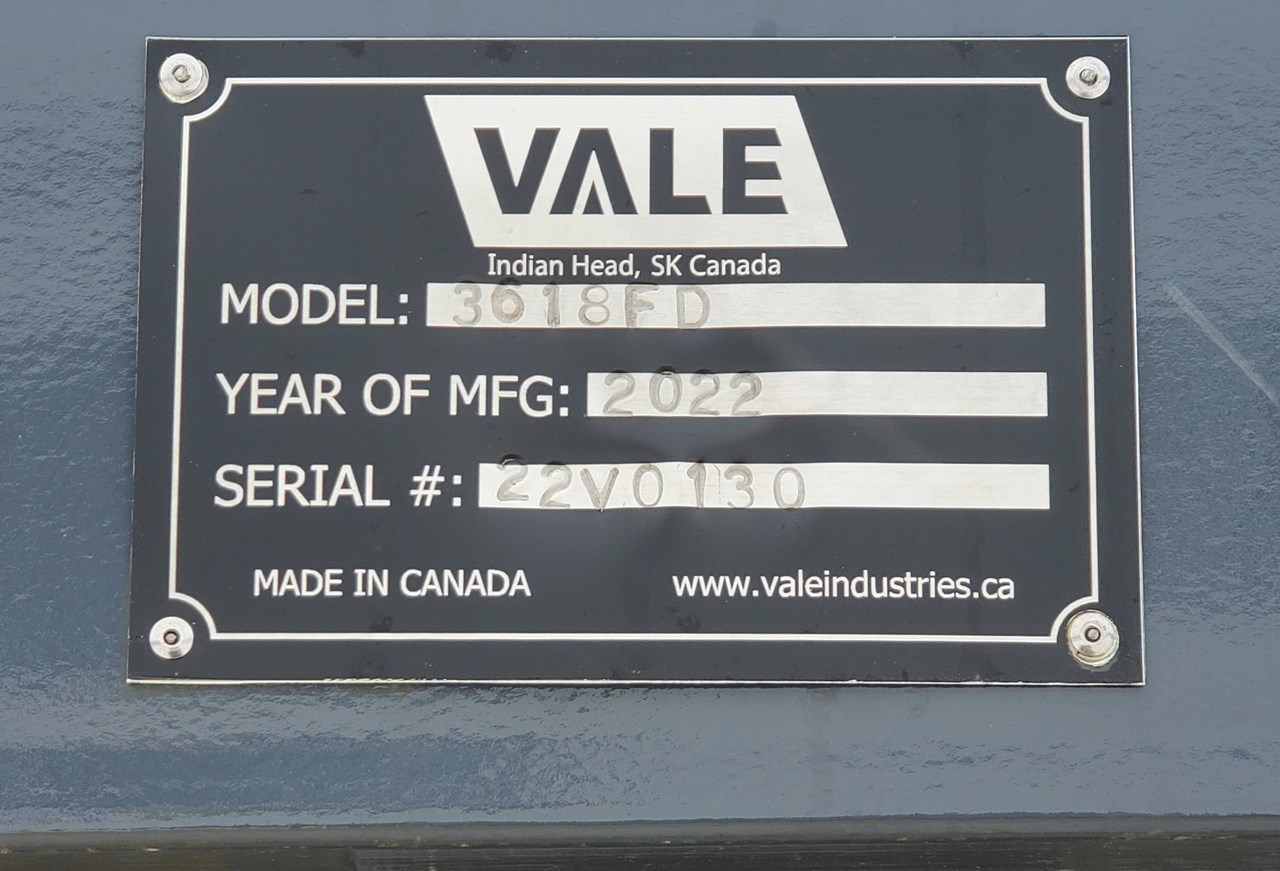

Inventory ID
U00005841
Serial
22V0130
Machine Location
View Google Map 841 Oak Point Highway Winnipeg, Manitoba R3C 2E6
  • Email a friend

    Send to a Friend

    Fields with asterisks * are required
  • Loan Calculator

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Details

  • Inventory ID: U00005841
  • Status: On Yard
  • Make: Other
  • Model: 3618FD
  • Year: 2022
  • Serial#: 22V0130

Notes

  • 3618FD FEEDER EQUIPPED PER THE BELOW:
  • PLANT DESIGN AND CAPACITY
    - 150-600 TONS/HR
    - BASED ON 100 PCF MATERIAL
  • - 11YD3 HOPPER
    - MATERIAL FLOW SELF-RELIEVING PROFILE AT SKIRT LEVEL
    - SCREW ADJUSTABLE DISCHARGE GATE
    - CANOE LINERS 1.5›¼À X 7›¼À WITH 45›¼° TOP ANGLE BACK AND FULL LENGTH HOPPER SIDES
    - INCLUDING SKIRT EXTENSION PAST HEAD PULLEY
    - 3/8›¼À PLATE SIDE WALLS AND ›¼¼›¼À PLATE END WALLS
    - 75 DEGREE FRONT AND BACK WALL ANGLES 60›¼° SIDE WALLS
  • STRUCTURE AND RAMP UP
    - HSS HOPPER STRUCTURES WIDE FLANGE SKID
    - BOLT-ON ›¼¼›¼À PLATING RELOCATABLE TO BOTH SIDES
    - TOW LUGS ON 4 CORNERS OF SKID
  • 36›¼À X 18›¼À™ FEEDER
    - 330/3 PLY 1/4X1/16 D1 BELT VULCANIZED
    - 12X38 HEAD DRUM PULLEY 3/8 LAGGED 1045 SHAFTING 215 SCM BEARING UNITS
    - 12X38 WING TAIL PULLEY WITH SCREW TAKE-UP 1045 SHAFTING 207 SCM BEARING
    UNITS
    - TA5215H25 REDUCER WITH 1.8:1 RATIO V-BELT DRIVE
    - 15HP 460V ELECTRIC MOTOR
    - C5 SUPERIOR CARRY IDLERS 6.5›¼À SPACING UNDER HOPPER 9.5›¼À SPACING OUTSIDE
    HOPPER TO HEAD
    - RUBBER DISC RETURNS
    BELT CLEANER SUPERIOR XTERRA
    - REMOVABLE CHANNEL CARTRIDGE STRUCTURE; GUARDS FOR TAIL AND IMPACT AREAS
    URETHANE PREMIUM COATING GRAPHITE GREY RAL 7024
    - OWNER›¼À™S MANUAL
  • NOTE: IT IS THE END USER›¼À™S RESPONSIBILITY TO ENSURE SAFETY AND GUARDING MEET LOCAL REGULATIONS.
