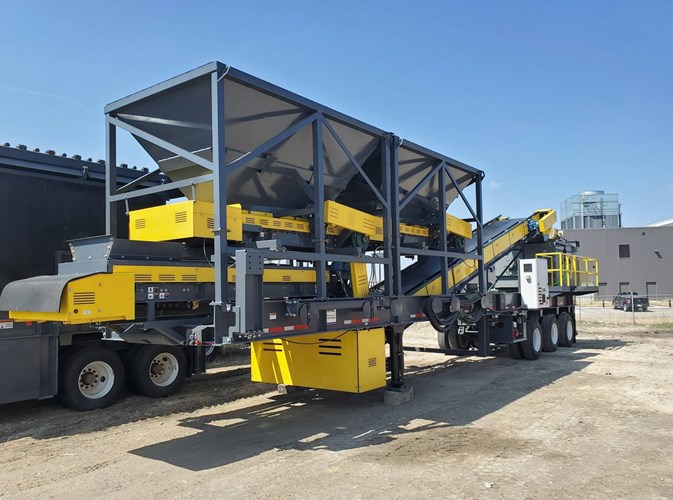

2021 Other Washing Equipment 3686
Fields with asterisks * are required.
Print This Page
Description
PUG MILL PLANT
Inventory ID
U00006121
Serial
210360
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: U00006121
- Status: On Rent
- Make: Other
- Model: 3686
- Year: 2021
- Serial#: 210360
Notes
- VALE/EAGLE 3686 PUG MILL PLANT EQUIPPED AS PER BELOW:
- PLANT DESIGN:
- CARRIES EIW 36" X 8-6" PUG MILL MIXER AND ACCESSORIES
- PUGMILL AND WATER PUMPS SUPPLIED BY DEALER AND INSTALLED BY VALE
- 750 TONS/HR DISCHARGE CONVEYOR
- QTY. (2) TWO 50-400 TONS/HR FEEDER
- BASED ON 100 PCF MATERIAL - PLANT STRUCTURE AND HIGHWAY TRANSPORT:
- W21 MAIN BEAMS AND PRIMARY CROSS MEMBERS
- PUGMILL MOUNTED TO CHASSIS SUPPORT POINTS
- HSS AND ANGLE STRUCTURE HOPPER SUPPORTS
- 6 BLOCKING LEG POSITIONS AND 2 FOLD-DOWN LEGS
- TRIDEM AXLE WITH DUAL 11R22.5 TIRES HUTCH SUSPENSION
- 5TH WHEEL PIN AND TOWING BAR
- AIRE BRAKES LIGHTS RELECTIVE TAPE MUD FLAPS
- CABLE HANGERS - 9YD3 HOPPER AND 6YD3 HOPPER:
- 1/4" PLATE HOPPER WALLS
- 75 DEGREE FRONT AND BACK WALL ANGLES 60 DEGREE SIDE WALLS
- INTEGRAL VIBRATOR MOUNTS
- MATERIAL FLOW SELF-RELIEVING PROFILE AT SKIRT LEBEL
- ADJUSTABLE DISCHARGE GATE
- SKIRT EXTENSION PAST HEAD FLOW GUIDE ONTO DISCHARGE CONVEYOR
- CANOE LINERS 1.5" X 7" WITH 45 DEGREE TOP ANGLE BACK AND FULL LENGTH HOPPER
SIDES
- INCLUDING SKIRT EXTENSION TO HEAD PULLEY
- STRUCTURAL SUPPORT COLUMNS AND HORIZONTAL MEMBER BRACING
- BOLT TO CHASSIS I-BEAMS PICK OFF FOR FEEDER CARTRIDGE MAINTENANCE - 30" X 11- FEEDERS:
- 30" BELT 375 3 PLY 1/4X1/16 D6 BELT VULCANIZED
- 12X32 HEAD DRUM PULLEY HERRINGBONE LAGGED 1045-307 SHAFTING 215 SCM BEARING
UNITS
- 12X32 WING TAIL PULLEY WITH SCREW TAKE-UP 1045-215 SHAFTING 207 SCM BEARING
UNITS GUARDED
- 10 HP WEG 460V ELECTRIC MOTOR DRIVE WITH DODGE TA4207H40 REDUCER V-BELT DRIVE
WITH GUARD
- PPI C5 IDLERS 10" SPACING
- RUBBER DISC RETURNS 2
- REMOVABLE CHANNELCARTRIDGE STRUCTURE GUARDS FOR TAIL AND IMPACT AREAS
- SUPERIOR BELT CLEANER URETHANE BLADE AND TENSIONER
- FIXED HEAD END
- C8 CHANNEL FRAME CARTRIDGE MAINTENANCE REMOVABLE - 36" X 38- DISCHARGE CONVEYOR:
- 330/3 PLY 3/16 X 1/16 D0 BELT VULCANIZED
- 14X38 HEAD DRUM PULLEY 3/8 LAGGED 1045-307 SHAFTING 215 SCM BEARING UNITS
- 12X38 WING TAIL PULLEY WITH SCREW TAKE-UP 1045-215 SHAFTING 207 SCM BEARING
UNITS
- 15 HP WEG 460V ELECTRIC MOTOR DRIVE WITH DODGETA3203H15 SHAFT MOUNT REDUCER
WITH BACKSTOP V-BELT DRIVE WITH GUARD
- PPI C5 CHANNEL INSET IDLERS
- 35 DEGREE TROUGH STEEL ROLL 4- CARRY SPACING & 3 X 1- LOAD POINT
- RUBBER DISC RETURNS 10- SPACING
- GUARDS FOR TAIL RETURNS BEYOND CHASSIS AT HEAD END
- SUPERIOR BELT CLEANER URETHANE BLADE AND TENSIONER
- C8 CHANNEL FRAME
- PROVISIONS FOR SCALE INSTALL - PLATFORM HANDRAIL LADDER TO ACCESS PUG MILL
- BASE SCOPE INCLUDES 2- WIDE PLATFORM ON 1 SIDE OF PUG MILL
- WITH LADDER AND SAFETY GATE ACCESS
- STANDARD DESIGN
- CHEKCER PLATE PLATFORM WITH 6" KICK PLATES
- 42" HSS 1.5" HANDRAIL WITH MID-RAIL AND POSTS REMOVABLE
- SAFETY GATE SELC-CLOSING UP TO 30" WIDE ACCESS POINTS - OPTIONS INCLUDED:
- HYDRAULIC PACKAGE HONDA GX270 QAE 9 HP WITH ELECTRIC START BACK UP RECOIL 3A
CHARGE SYSTEM
- RUN-ON QTY. (4)
- 58 900 LBS 5X18 RUN-ON LEGS
- DUAL COUNTERBALANCE VALVE HARDPIPED
- LOCKING PIN WITH FINE ADJUSTMENT
- INDIVIDUAL VALVE CONTROL POWERED BY HYDRAUILIC PACKAGE
- QTY. (1) TOOL BOX
- 3/8" AR 400 HOPPER LINER (BOTH HOPPERS) - EAGLE 36" X 8- 6" PUG MILL MIXER
- 350-750 TPH/60 RPM SHAFT SPEED
- STANDARD EIW GEAR REDUCER
- FEED HOPPER
- HINGED COVERS OVER MIXING AREA
- SPRAY BARS
- FLOW METER
- EAGLE ARMOR PADDLES
- INTERMESHING SHAFTS PROVIDE THOROUGH MIXING OF MULTIPLE MATERIALS
- 2 1/2 MAX MATERIAL SIZE
- OUTBOARD BEARINGS - SPHERICAL - ROLLER REAR GREASE BEARINGS
- WEG 75 HP 1800 RPM 230-460 VOLT 3 PH 60HZ ELECTRIC MOTOR - 2876-95 3" FRESH WATER PUMP EQUIPPED AS PER BELOW:
- 3" CAST IRON WATER PUMP
- 15 HP ELECTRIC MOTOR 480V 3 PHASE
- WITH WATER MANIFOLD TO FEED PUGMILL FRESH WATER - THIS PUMP IS NOT USEABLE IN
A POLYMERE FEED OR CHEMICAL FEED APPLICATION - AES ELECTRICAL SWITCHGEAR PANEL EQUIPPED AS PER BELOW:
- 36X48 NEMA 3R/4 ENCLOSURE
- TO BE PLANT MOUNTED
- DRIP SHIELD
- CONTROLS TO BE INSTALLED LOW INTHE DOOR
- 225 AM MAIN CIRCUIT BREAKER
- EXTERNAL LOCKABLE OPERATOR
- INSTALLED IN LOWER RIGHT HAND SIDE
- MANUALLY OPERATED START UP ALARM HORN
- 75 HP PUGMILL MOTOR
- 125 AMP CIRCUIT BREAKER
- NEMA/IEC RATED SIZE 3 MOTOR STARTER
- CONTROLS IN ENCLOSURE DOOR
- HOUR METER
- 15 HP PUGMILL FEED BELT
- 40 AMP CIRCUIT BREAKER
- NEMA/IEC RATED SIZE 2 MOTOR STARTER
- CONTROLS IN ENCLOSURE DOOR
- 10 HP BIN FEEDER BELT #1
- 25 AMP CIRCUIT BREAKER
- ABB ACS880 VARIABLE FREQUENCY DRIVE
- SPPED POTENTIOMETER
- CONTROLS IN ENCLOSURE DOOR
- 10 HP BIN FEEDER BELT #2
- 25 AMP CIRCUIT BREAKER
- ABB ACS880 VARIABLE FREQUENCY DRIVE
- SPEED POTENTIOMETER
- CONTROLS IN ENCLOSURE DOOR
-10 HP FRONT CONVEYOR - FOR STAND ALONE FEED
- 25 AMP CIRCUIT BREAKER
- CONTROLS IN ENCLOSURE DOOR
- 20 HP FOR PUMP
- 60 AMP CIRCUIT BREAKER
- NEMA/IEC RATED SIZE 2 MOTOR STARTER
- CONTROLS IN ENCLOSURE DOOR
- WIRED TO A 3 FOOTPIGTAIL WITH HUBBELL CONNECTOR
- PLUG INCLUDED
- 750 VA CONTROL POWER TRANSFORMER
- (2) 2 AMP PRIMARY SIDE FUSES
- (1) 6 AMP SECONDARY SIDE FUSE
- WITH 150 FEET OF MAIN POWER CORD. - PAINTED GRAPHITE GREY WITH YELLOW GUARDING
- GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS›¼À™ GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR PRIOR TO STARTUP OF EQUIPMENT OPERATIONS CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER.
