2017 Superior 3625 Washing Equipment For Sale

  • Price
  • Call for Price
  • Description
  • SINGLE SCREW FINE MATERIAL WASHER
  • Inventory ID
  • U00005547
  • Serial
  • 1040616
(800) 437-2924
Machine Location:
View Google Map
General Aggregate Equipment Sales
841 Oak Point Highway
Winnipeg, Manitoba R3C 2E6

Details

  • Inventory ID: U00005547
  • Status: On Yard
  • Make: Superior
  • Model: 3625
  • Year: 2017
  • Serial#: 1040616

Equipment Text

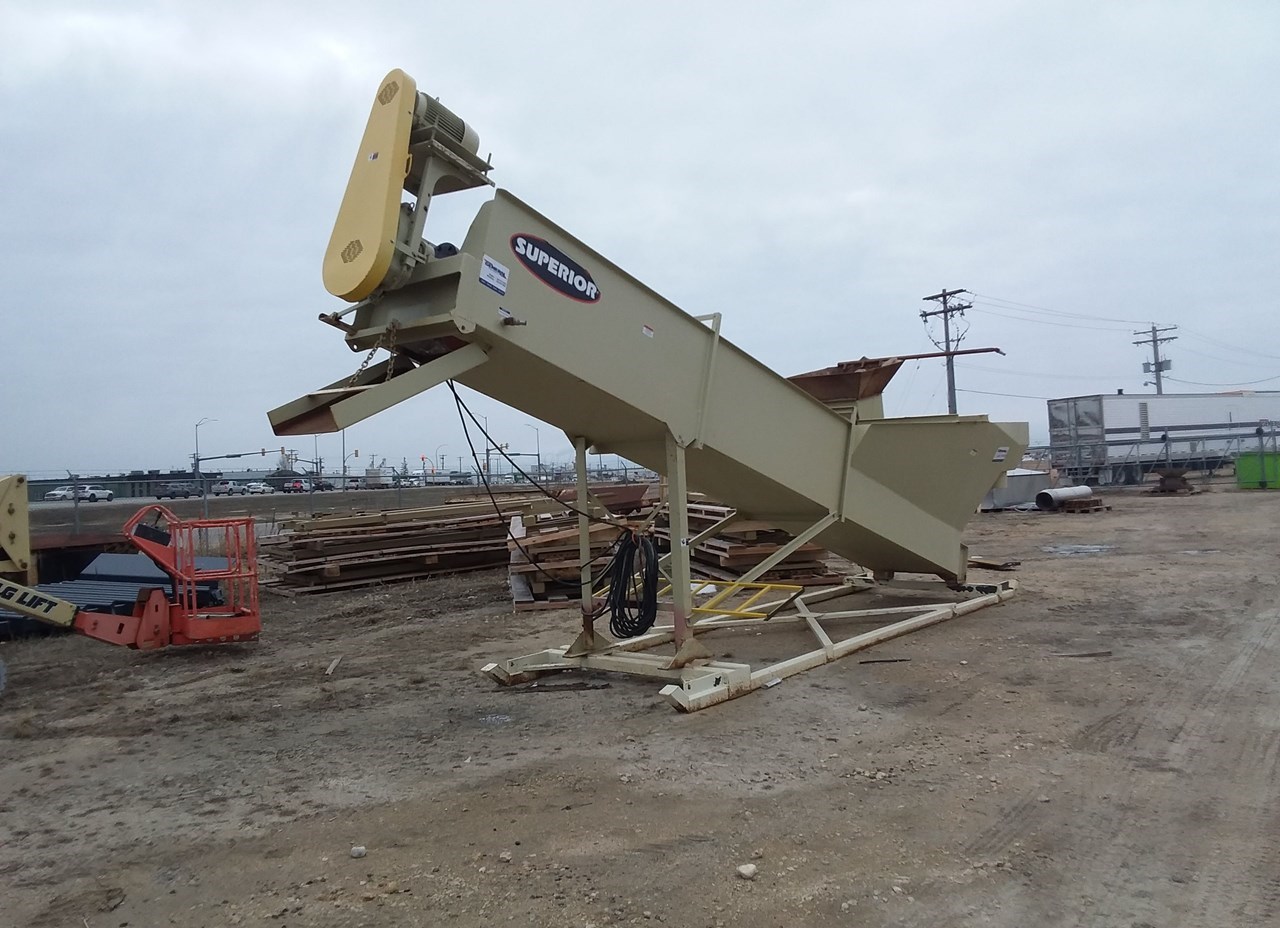

  • SUPERIOR 36" X 25- SINGLE FINE MATERIAL WASHER EQUIPPED AS PER BELOW:
  • - CONSTRUCTION - 1/4" ASTM A36 STEEL
    - BEARINGS - OUTBOARD PILLOW BLOCK
    - SUPPORTS - FRONT END SUPPORTS
    - FLUME - OVER-FLOW FLUME WITH ADJUSTABLE WEIR
    - DISCHARGE CHUTE- MATERIAL DISCHARGE CHUTE
    - FEED HOPPER - TAIL END FEED HOPPER
    - TUB BAFFLE - TUB BAFFLE INCLUDED
    - OVERFLOW CAP-S.
    - 100M CUT - 700 GPM
    - 150M CUT - 330 GPM
    - 200M CUT - 180 GPM
    - PAINT - SUPERIOR CLASS 1 - (1) COAT PRIMER; (1) TOP COAT ENAMEL
    SCREW SPECIFICATIONS:
    - SCREW SIZE - 36" X 25-
    - SCREW SPEED (%) - 100
    - SCREW (RPM) - 20 RPM
    - CAPACITY - 100 STPH
    - WEAR SHOES - URETHANE WEAR SHOES
    - SHAFT - SPIRAL TYPE HALF PITCH FLIGHTED FOR HIGH CAPACITY WITH
    ADJUSTABLE - MOUNTS
    DRIVE SPECIFICATIONS:
    - MOTOR - 15 HP 1800 RPM TEFC
    - VOLTAGE - 230/480V / 3PH / 60 HZ
    - V-BELT DRIVE - WITH DRIVE GUARD
    - ELECTRICAL - CONTROL PANEL AND WIRING NOT INCLUDED
    - GEAR BOX - DODGE SHAFT MOUNT
    STATIONARY DIMENSION SPECIFICATIONS:
    - SHIPPING - UNIT SHIPPED UNASSEMBLED FEED HOPPER SUPPORT LEGS AND DISCHARGE
    - CHUTE ASSEMBLED ON SITE BY CUSTOMER
    - SHIPPING LENGTH - 28--3"
    - SHIPPING WIDTH - 4--1"
    - SHIPPING HEIGHT - 6--9"
    - EMPTY WEIGHT - 10 600 LBS.
