2015 KPI-JCI 31-3080 Conveyor - Stacking For Sale

Call For Price
Request More Info
Description
KOLBERG CONVEYOR
Inventory ID
U00005442
Serial
415040

(800) 437-2924

Machine Location:

General Aggregate Equipment Sales

841 Oak Point Highway
Winnipeg, Manitoba R3C 2E6

Details

Inventory ID: U00005442
Status: On Yard
Make: KPI-JCI

Model: 31-3080
Year: 2015
Serial#: 415040

Equipment Text

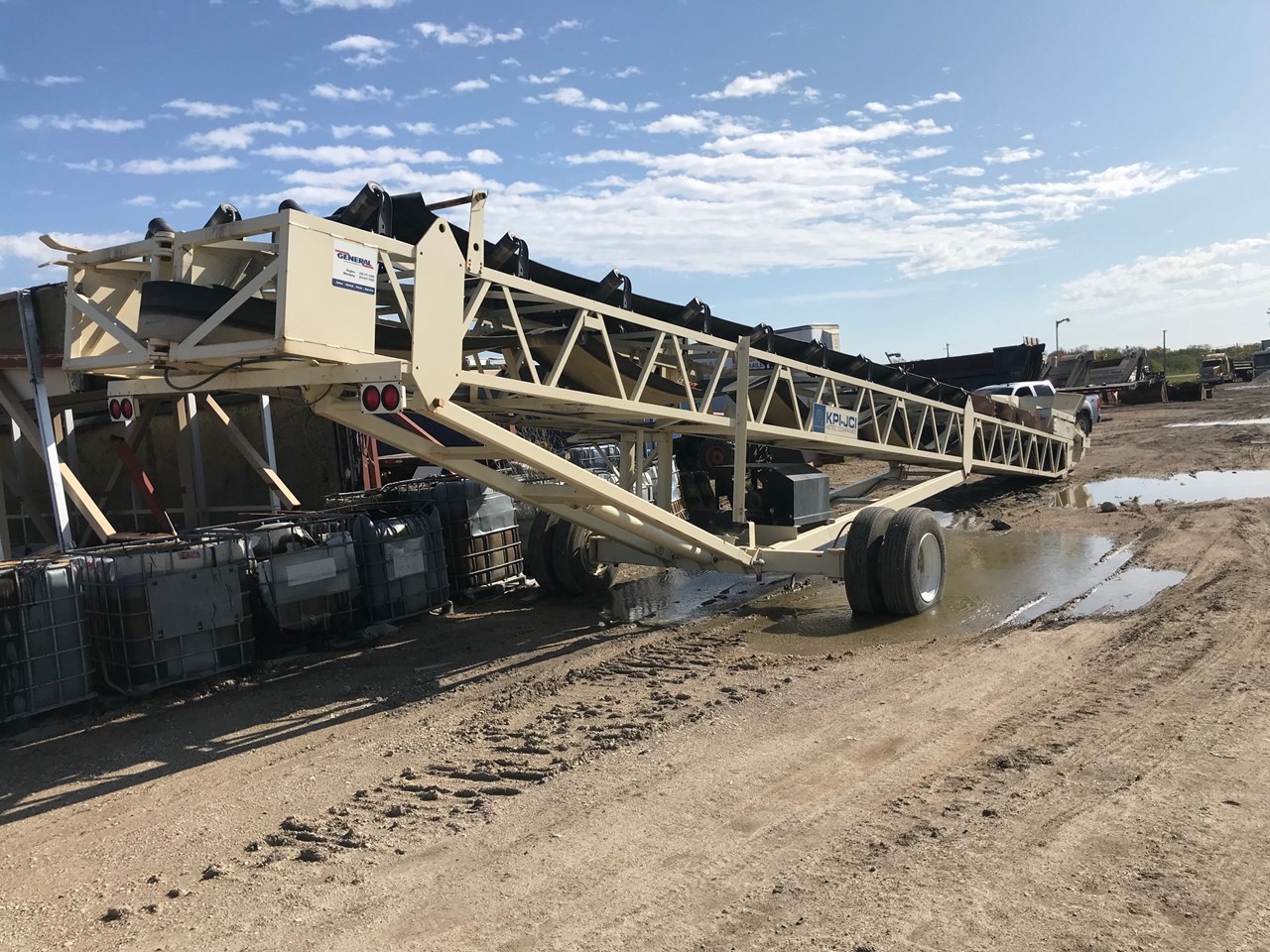

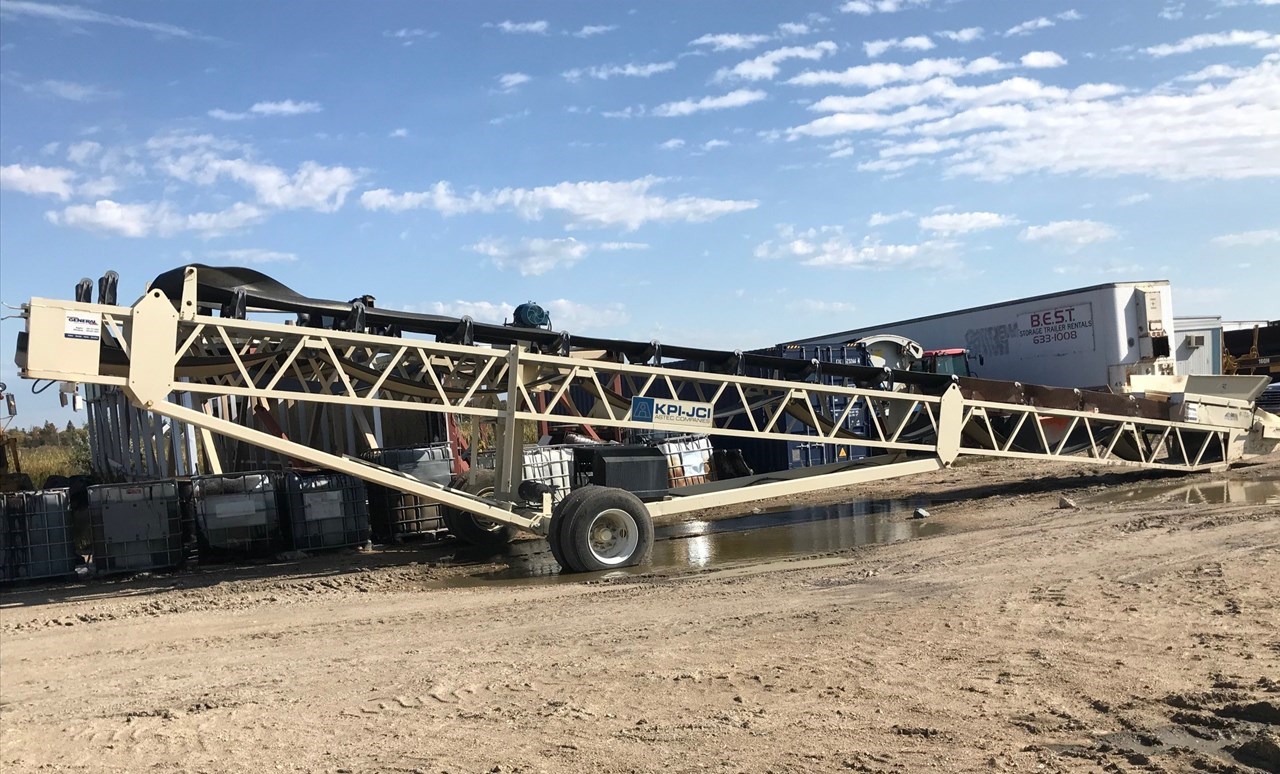

USED KOLBERG MODEL 31-3080 (30" X 80-) SIDE FOLD RADIAL STACKER EQUIPPED WITH:
- FRAME: 30" DEEP LATTICE WITH 3" X 3" X ›¼¼" CHORD ANGLES
- MANUAL SIDE FOLD - HEAD END
- UNDERCARRIAGE: MANUAL TELESCOPING PIN LOCK; SINGLE AXLE WITH DUAL 11:00-22.5 TIRES ON SWIVEL WHEEL BOXES; 7-1/2 HP ELECTRIC/HYDRAULIC POWER PACK UNDERCARRIAGE LIFT CYLINDER
- DRIVE ASSEMBLY: HEAD END V-BELT DRIVE FOR 350 FPM BELT SPEED
- CAPACITY: 500 TPH OF 100 PCF MATERIAL
- MOTOR: 20 HP ELECTRIC 1800 RPM
- REDUCER: CLASS I DODGE TA3203 SHAFT MOUNT
- BACKSTOP: INTERNAL TYPE IN REDUCER
- HEAD PULLEY: 16" GROOVED RUBBER LAGGED DODGE SCM BALL BEARINGS
- TAIL PULLEY: 14" STEEL WING DODGE SCM BALL BEARINGS
- TAKE-UP: 18" TRAVEL SCREW TYPE
- IDLERS: CEMA B 5" DIAMETER STEEL ROLL SEALED FOR LIFE BALL BEARINGS
- LOAD AREA IDLERS: 20 DEGREE CLOSE SPACED UNDER RECEIVING TROUGH
- TROUGHING IDLERS: 35 DEGREE ON 4- SPACING
- RETURN IDLERS:FLAT ROLLS ON 10- SPACING
- RECEIVING TROUGH: 5- 6" WITH ADJUSTABLE RUBBER FLASHING
- BELT: 3-PLY 330 PIW 3/16" X 1/16"
- VULCANIZED BELT SPLICE
- BELT CLEANER: MARTIN PIT VIPER WITH TENSIONER
- RADIAL HOPPER: ROCK BOX HOPPER
- ANCHOR PIVOT FOR RADIAL TRAVEL
- PINTLE HITCH: BOLT ON DESIGN
- KING PIN: BOLT ON DESIGN
- TRAVEL LIGHTS: BRAKE AND DIRECTIONAL INCLUDES MUDFLAPS
- AIR BRAKES
- PAINTED CEDARAPIDS STONE GRAY
- ELECTRICAL SWITCHGEAR: NO POWER CORD
