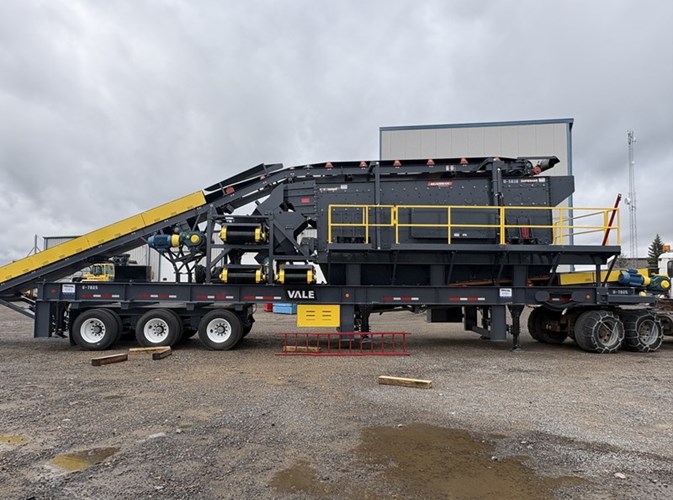

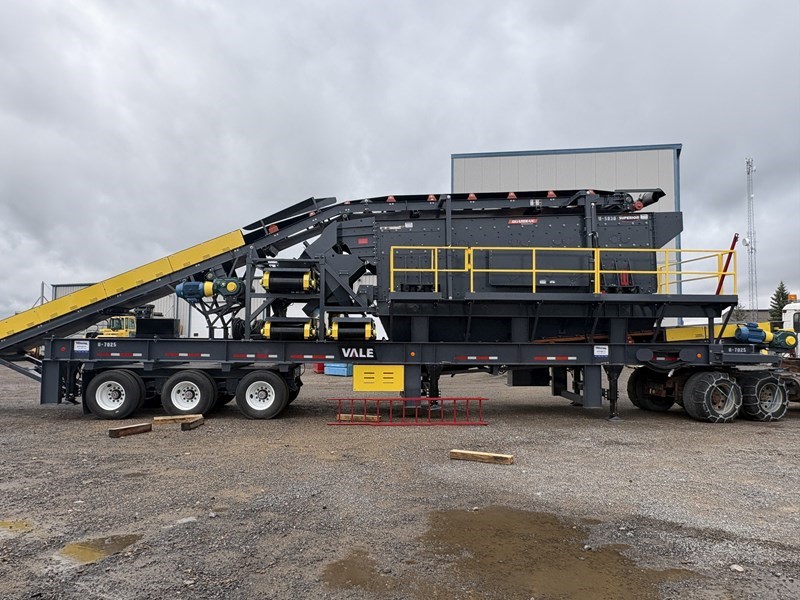

2026 Other Screening Plant 7203-38OF
Fields with asterisks * are required.
Print This Page
Description

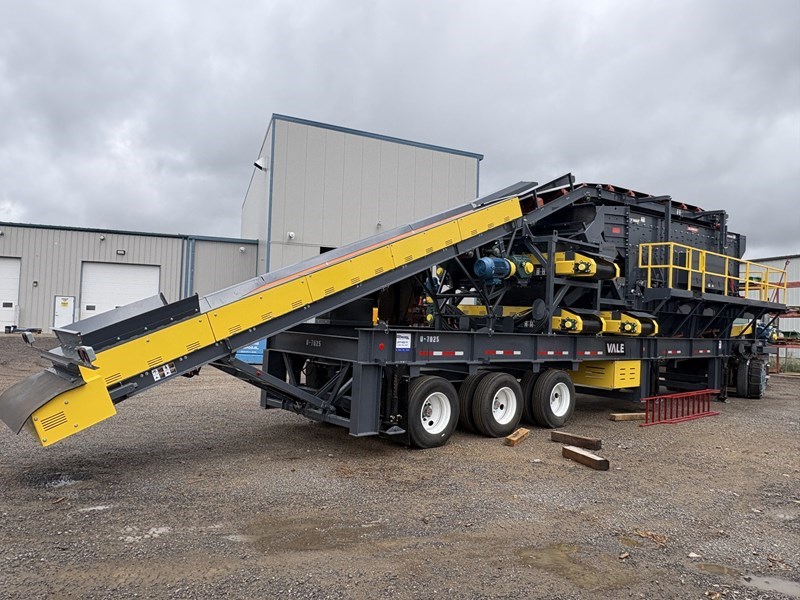

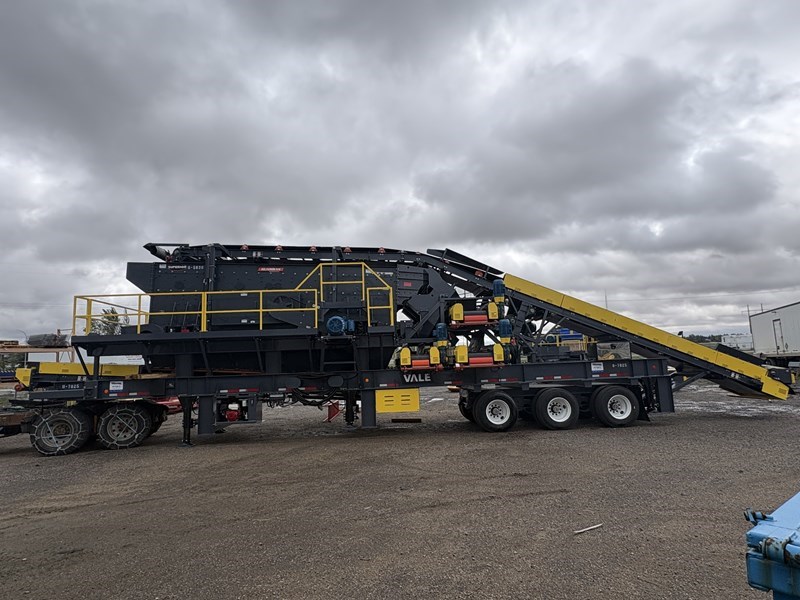

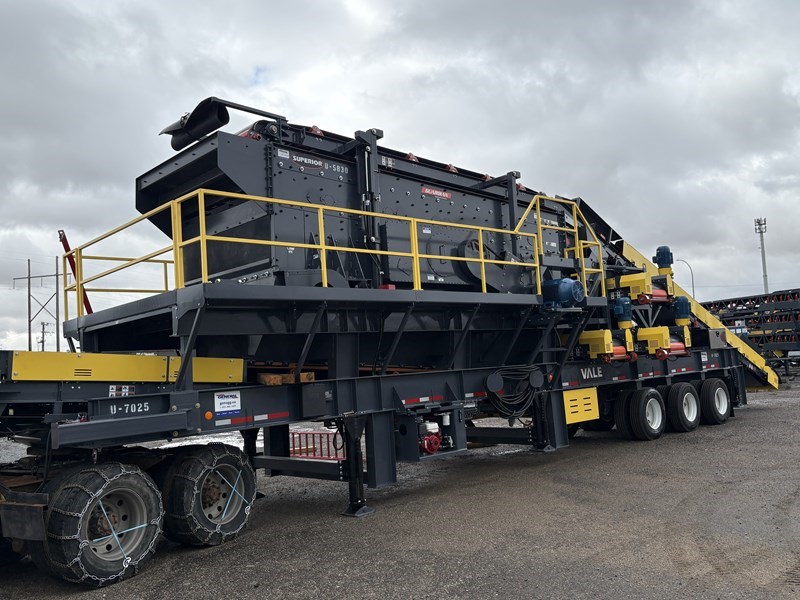

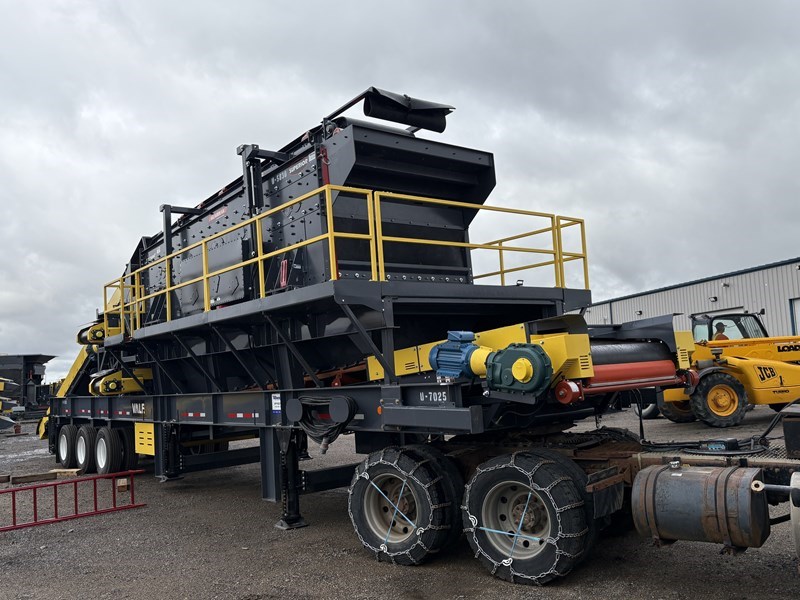

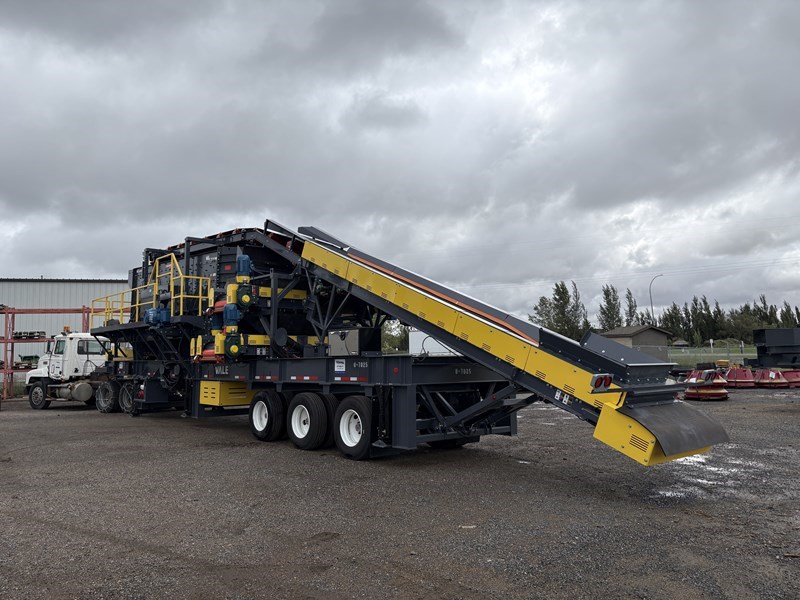

SCREEN PLANT W/ OVERHEAD FEED CONVEYOR
Inventory ID
U00007025
Serial
26V0400
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: U00007025
- Status: On Rent
- Make: Other
- Model: 7203-38OF
- Year: 2026
- Serial#: 26V0400
Notes
- VALE 7203 OHF SCREEN CHASSIS EQUIPPED AS PER BELOW:
- PLANT DESIGN:
- CARRIES 7203 SUPERIOR SCREEN
- SCREEN SUPPLIED WITH ITS MOTOR MOTOR MOUNT DRIVE PACKAGE DRIVE GUARD
- BASE FRAME BY VALE - PLANT STRUCTURE AND HIGHWAY TRANSPORT:
- MAINI BEAMS AND PRIMARY CROSS MEMBERS
- SCREEN BASE FRAME WELD-MOUNTED TO CHASSIS SUPPORT POINTS
- MOTOR FRAME KNEE BRACES
- 2 SWING DOWN LEGS KING PIN END
- TRIDEM AXLE WITH DUAL 11R22.5 SAILUN TIRES SPRING SUSPENSION
- 5TH WHEEL PIN AND TOWING BAR
- AIR BRAKES LIGHTS REFLECTIVE TAPE MUD FLAPS - VALVE BLOCK CYLINDERS HOSES AND FITTING:
- 5 VALVE BLOCK FOR INDIVIDUAL OPERATION
- 2 HYDRAULIC LEVELING CYLINDERS
- 2 HYDRAULIC CYLINDERS OVERHEAD FEED HEAD END FOR TRANSPORT/OPERATION POSITIONS.
- 1 HYDRAULIC CYLINDER OVERHEAD FEED TAIL END FOR TRANSPORT/OPERATION POSITIONS.

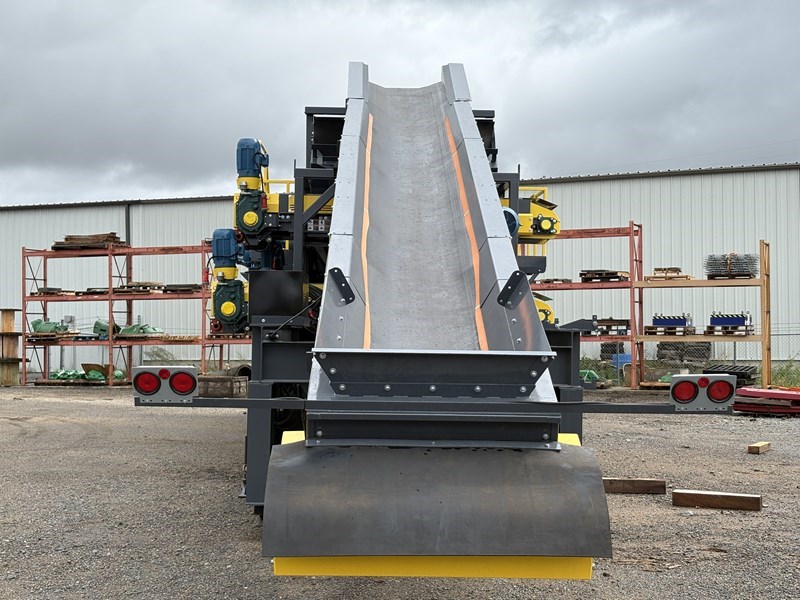

- ALL FITTINGS AND HOSES - OVERHEAD FEED CONVEYOR 42" X 51-:
- 330-3 PLY 3/16X1/16 D1 BELT VULCANIZED
- S-DRIVE ARRANGEMENT
- SUPERIOR 14 NON-DRIVE HEAD PULLEY 1045 SHAFTING 215 SCM BEARING UNITS
- SUPERIOR 12 WING TAIL PULLEY WITH SCREW TAKE-UP 1045 SHAFTING 215 SCM BEARING UNITS GUARDED
- SUPERIOR 14 DRIVE PULLEY 3/8 LAGGED 1045 SHAFTING 215 SCM BEARING UNITS
- SUPERIOR 14 BEND HERRINGBONE WING PULLEY 1045 SHAFTING 215 SCM BEARING UNITS
- 25 HP WEG ELECTRIC MOTOR DRIVE
- DODGE MTA TA4207H25 RIGHT ANGLE DRIVE WITH BACKSTOP
- SUPERIOR C5 20 DEGREE CHANNEL INSET TROUGH IDLERS AND FLAT RUBBER DISC RETURNS
35 DEGREE ON INCLINE 20 DEGREE ABOVE SCREEN
- 1--6" LOAD ZONE 3- CARRY 10- RETURN SPACING
- IMPACT IDLERS (4) LOAD ZONE
- SUPERIOR CLICK BELT CLEANER
- LOAD POINT WITH CLAMP ADJUSTED SKIRT RUBBER
- INCLINE SECTION SKIRT AND RUBBER FLASHING WITH GUARD BOLT-IN PAST CURVE
- TUBE-IN-TUBE HEAD SUPPORT LEGS
- TUBE-IN-TUBE TAIL SUPPORT LEGS
- SPILL CURTAIN HEAD END
- EXTENDED STRUCTURE WITH RUBBER DRAPE TO STOP MATERIAL FROM GOING OVER FEED END - SCREEN ADDITIONS:
- COMBINED TOP AND MID DECK LIPS WITH BOLT IN AR400 LINER
- LAYOUT TO MATCH CROSS CONVEYOR ARRANGEMENT
- SCREEN BASE FRAME BY VALE - SCREEN DISCHARGE FRAME & CHUTES BLEND GATE ARRANGEMENT:
- BLEND GATE ARRANGEMENT WITH WELD IN 1/4AR400 WEAR LINERBOLT-IN DIVERTER PANELS FOR BLENDING DIRECTION CHANGES
- 50/50 TOP - 25/25/25/25 BOTTOM
- SUPPORTS FOR 3 CROSS CONVEYORS WITH SLIDE CAPABILITY - CROSS CONVEYORS (1) 24" x 12-1"(2) 30" X 12-1" STANDARD OVERALL LENGTH:
- 330-3 PLY 3/16X1/16 D1 BELT VULCANIZED
- SUPERIOR 10 HEAD DRUM PULLEY 3/8 LAGGED 1045 SHAFTING 203 SCM BEARING UNITS - GUARDED - SUPERIOR 10 WING TAIL PULLEY WITH SCREW TAKE-UP 1045 SHAFTING 203 SCM BEARING UNITS GUARDED
- 7.5HP WEG ELECTRIC MOTOR DRIVE
- DODGE MTA SIZE 2 RIGHT ANGLE DRIVE
- SUEPRIOR B4 20 DEGREE CHANNEL INSET TROUGH IDLERS AND FLAT RUBBER DISC RETURN IMPACTS FOR TOP CROSS
- 1--6" TROUGH SPACING 1 RETURN
- SUPERIOR CLICK BELT CLEANER
-C CHANNEL FRAME CARTRIDGE REVERSIBLE AND SLIDE-ABLE 11--6" STANDARD OVERALL LENGTH
- CONVEYOR SKIRTS WITH CLAMP ADJUSTED RED GUM RUBBER FLASHING - UNDER SCREEN HOPPER:
- 1/4" PLATE HOPPER WITH SLOPED SIDEWALLS
- CLAMP-ADJUSTED SKIRT RUBBER SIDES AND BACK
- ALLOWANCE FOR 3620RC REJECT CONVEYOR MOUNTING - UNDER SCREEN CONVEYOR 60":
- 330-3 PLY 3/16X1/16 D1 BELT VULCANIZED
- SUPERIOR 12 HEAD DRUM PULLEY 3/8 LAGGED 1045 SHAFTING 215 SCM BEARING UNITS - - GUARDED SUPERIOR 12 WING TAIL PULLEY WITH SCREW TAKE-UP 1045 SHAFTING 215 SCM BEARING UNITS GUARDED
- 20 HP WEG ELECTRIC MOTOR DRIVE
- DODGE MTA SIZE 4 RIGHT ANGLE DRIVE WITH BACKSTOP
- SUPERIOR C5 20 DEGREECHANNEL INSET TROUGH IDLERS AND FLATRUBBER DISC RETURNS
- 3- CARRY 10- RETURN SPACING
- SUPERIOR CLICK BELT CLEANER
- C CHANNEL FRAME CARTRIDGE MAINTENANCE REMOVABLE - PLATFORM HANDRAIL LADDER:
- BASE SCOPE INCLUDES 2- WIDE PLATFORM ON 2 SIDES AND AT BACK OF SCREEN1 LADDER WITH SAFETY GATE ACCESS
- LOCAL PLATFORM OVER SCREEN DRIVE MOTOR
- STANDARD DESIGN CHECKER PLATE PLATFORM WITH 6" KICK PLATES
- 42" HSS 1.5" HANDRAIL WITH MID-RAIL AND POSTS REMOVABLE - INCLUDED OPTIONS:
- TOOLBOX
- (6)RUN ON LEGS
- SUPERIOR CLICK SCRAPERS ON OVERHEAD FEED CONVEYOR
- (3) Superior CLICK SCRAPERS ON CROSS CONVEYORS
- MODIFIED HYDRAULIC PACKAGE FOR USE OF 12V or HONDA GAS HPU - - URETHANE PREMIUM COATING GRAPHITE GREY SAFETY YELLOW
- OWNER-S MANUAL AND PARTS LIST - NOTE: IT IS THE END USER-S RESPONSIBILITY TO ENSURE SAFETY AND GUARDING MEET LOCAL REGULATIONS
