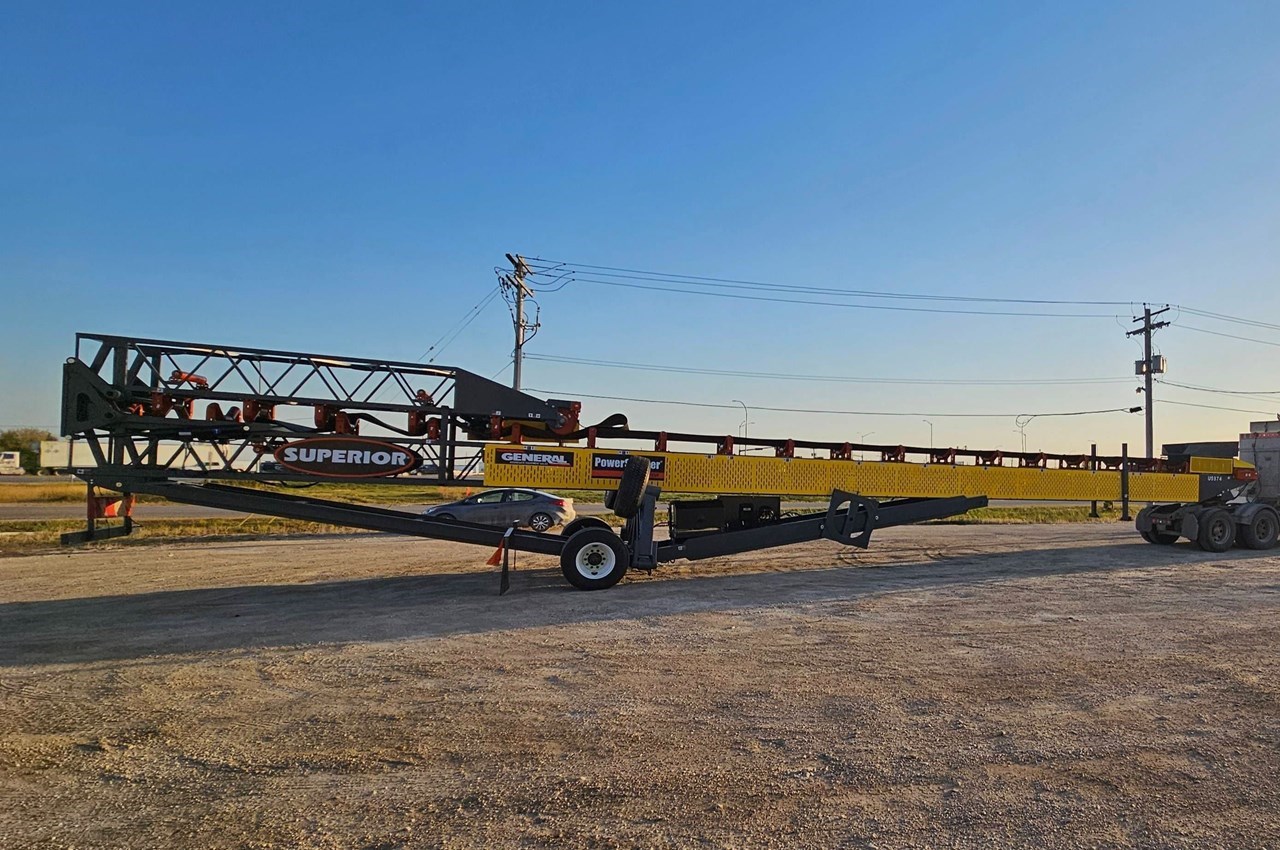

2023 Superior Conveyor - Stacking 30X95PS
Fields with asterisks * are required.
Print This Page
Description
SUPERIOR CONVEYOR
Inventory ID
U00005974
Serial
2275482
Machine Status
Equipment is on rent
Contact your Salesperson for more information
Contact your Salesperson for more information
Details
- Inventory ID: U00005974
- Status: On Rent
- Make: Superior
- Model: 30X95PS
- Year: 2023
- Serial#: 2275482
Notes
- SUPERIOR 30›¼À X 95›¼À™POWER STACKER EQUIPPED AS PER BELOW:
- CONVEYOR FRAME:
- MAIN FRAME ›¼À“ 30›¼À DEEP TRUSS
- CHORD ANGLES ›¼À“ 3›¼À X 3›¼À X 1/4"
- LATTICE MEMBERS ›¼À“ 1-1/2›¼À X 1-1/2›¼À X 3/16›¼À
- CONTAINERIZED ›¼À“ NOT INCLUDED - DRIVE SPECIFICATIONS:
- DRIVE ›¼À“ CLASS I HEAD DRIVE
- GEAR REDUCER ›¼À“ SHAFT MOUNT
- BACKSTOP ›¼À“ INSTALLED IN REDUCER
- MOTOR ›¼À“ 25 HP TEFC
- V-BELT DRIVE ›¼À“ WITH DRIVE GUARD
- CAPACITY ›¼À“ 500 STPH OF 100 PCFMATERIAL 25 DEGREES SURCHARGE (90% FINES 10% - SPHERICAL LUMPS 5›¼À MINUS)
- BELT SPEED ›¼À“ 400 FPM
- DRIVE PULLEY ›¼À“ 18›¼À DIAMETER 3/8›¼À HERRINGBONE LAGGED DRUM
- TAIL PULLEY ›¼À“ 16›¼À DIAMETER CEMA CHEVRON WING
- SHAFTS›¼À“ TURNED AND POLISHED
- BEARINGS ›¼À“ INCLUDED
- TAKE-UP ›¼À“ SCREWTYPE - PORTABILITY:
- CONVEYOR SPLICE ›¼À“ HYDRAULIC TOP FOLDING HEAD SECTION WITH INTEGRAL BELT
KEEPER
- UNDERCARRIAGE ›¼À“ HYDRAULIC RAISE WITH 7.5 HP ELECTRIC PUMPING UNIT
- AXLE TYPE ›¼À“ FD15 AXLE
- TRANSPORT AXLE ›¼À“ (4) 11R-22.5 TRANSPORT TIRES WITH BRAKES AND MUD FLAPS
- RADIAL AXLE ›¼À“ (2) 385/65D-19.5 TIRES ON HYDRAULIC OUTRIGGERS POWER TRAVEL
(REQUIRES HYD. RAISE)
- RADIAL TRAVEL ›¼À“ PLEASE REVIEW AXLE OPTIONS
- FIFTH WHEEL ›¼À“ FOR ROAD TRAVEL BOLT ON DESIGN
- ANCHOR PIVOT ›¼À“ MAINTAINS TAIL END DURING RADIAL TRAVEL
- BRAKES ›¼À“ COMPLETE AIR BRAKE PACKAGE
- LIGHTS ›¼À“ PLEASE REVIEW LIGHT OPTIONS
- MUD FLAPS ›¼À“ PLEASE REVIEW MUD FLAP OPTIONS
- AXLE JACKS ›¼À“ NOT APPLICABLE
- LANDING GEAR ›¼À“ MANUAL PIN ADJUSTMENT
- TOWING EYE ›¼À“ PINTLE HITCH TYPE - CONVEYOR COMPONENTS:
- BELTING ›¼À“ 3-PLY 3/16 X 1/16 330PIW
- BELT SPLICE ›¼À“ FACTORY VULCANIZED BELT SPLICE
- SCRAPERS ›¼À“ SUPERIOR EXTERRA PRIMARY BELT SCRAPER
- IDLERS ›¼À“ CEMA C 5›¼À DIA. STEEL ROLLS SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL ›¼À“ SUPERIOR STANDARD SPINGUARD SEAL
- LOAD AREA ›¼À“ 20DEGREES TROUGH 12-16›¼À SPACING
- TROUGH ›¼À“ 35 DEGREES ON 4›¼À™ SPACING
- RETURNS ›¼À“ STEEL CANS ON 10›¼À™ SPACING
- RADIAL HOPPER ›¼À“ ROCK BOX
- RADIAL HOPPER LINER ›¼À“ NOT INCLUDED
- GATHERING TROUGH ›¼À“ 5›¼À™LONG WITH ADJUSTABLE RUBBER FLASHING - ADDITIONAL SPECIFICATIONS:
- GUARDING ›¼À“ FOR DRIVE AND TAIL PULLEYS V-BELT DRIVE AND RETURN IDLERS. GUARDS
MAY NOT MEET ALL LOCAL CODES; CUSTOMER IS RESPONSIBLE TO HAVE GUARDING
INSPECTED
- FULL LENGTH GUARDING ›¼À“ FULL LENGTH GUARDING PAINTED SAFETY YELLOW
- VOLTAGE ›¼À“ 480 V / 3 PH / 60 HZ
- CORD HOLDERS ›¼À“ (1) SET BENT PIPE STYLE
- CONTROL PANEL PLATE ›¼À“ NOT INCLUDED
- ELECTRICAL SWITCHGEAR PANEL WITH 200- OF MAIN POWER CORD
- PAINT ›¼À“ 1 COAT PRIMER 1 COAT FINISH ENAMEL GRAPHITE GRAY
- GUARD PAINT ›¼À“ SAFETY YELLOW
- IDLER PAINT ›¼À“ POWDER COATED SUPERIOR ORANGE
