2019 KPI-JCI 31-30100 Conveyor - Stacking For Sale

  • Price
  • $117,500 CAD
  • Description
  • KOLBERG CONVEYOR
  • Inventory ID
  • U00005315
  • Serial
  • 418612
(800) 437-2924
Machine Location:
View Google Map
General Aggregate Equipment Sales
18 McLeod Road
Emerald Park, Saskatchewan S4L 1B7

Details

  • Inventory ID: U00005315
  • Status: On Yard
  • Make: KPI-JCI
  • Model: 31-30100
  • Year: 2019
  • Serial#: 418612

Equipment Text

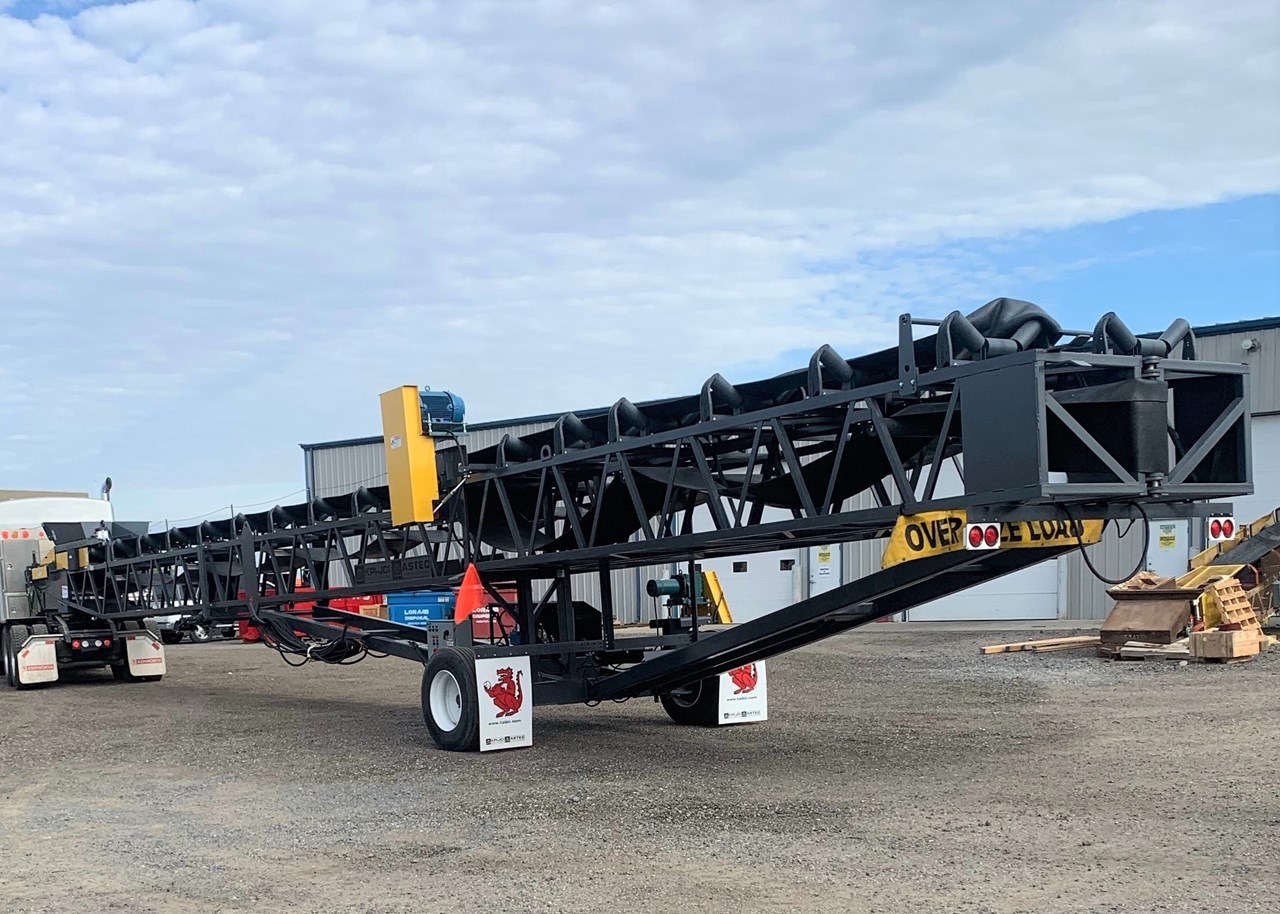

  • KOLBERG SERIES 31-30100 SIDEFOLDING STACKER EQUIPPED WITH:
  • BASIC SPECIFICATIONS:
    - FRAME: 36" DEEP LATTICE
    - SIDEFOLD: MANUAL SIDEFOLD - HEAD END
    - UNDERCARRIAGE:" MANUAL TELESCOPING PIN LOCK BUILT TO ACCEPT LIFT CYLINDER
    - AXLE:SINGLE AXLE WITH DUAL 11:00 - 22.5 TIRES ON SWIVEL WHEEL BOXES
    - DRIVE ASSEMBLY: HEAD END V-BELT DRIVE FOR 350 FPM BELT SPEED
    - CAPACITY: 500 TPH OF 100 PCF MATERIAL
    - MOTOR: 25 HP ELECTRIC 1800 RPM TEFC 3/60/460 LESS STARTERS & WIRING
    - REDUCER: CLASS I DODGE TA4207 SHAFT MOUNT
    - BACKSTOP: INTERNAL TYPE IN REDUCER
    - HEAD PULLEY: 18" GROOVED RUBBER LAGGED DODGE BEARINGS
    - TAIL PULLEY: 16" STEEL WING DODGE BEARINGS
    - TAKE-UP: 24" TRAVEL SCREW TYPE
    - IDLERS: CEMA "B" 5" DIAMETER STEEL ROLL SEALED FOR LIFE BALL BEARINGS
    - LOAD AREA IDLERS: 20 DEGREE CLOSE SPACED UNDER RECEIVING TROUGH
    - TROUGHING IDLERS: 35 DEGREE ON 4- SPACING
    - RETURN IDLERS: FLAT ROLLS ON 10- SPACING
    - RECEIVING TROUGH: 5-6" WITH ADJUSTABLE RUBBER FLASHING
    - BELT: GRADE 2 2-PLY 220 PIW 1/8" X 1/16" MECHANICAL FASTENERS.
  • INCLUDED OPTIONS:
    - BELT CLEANER: MARTIN WITH TENSIONER.
    - ROCK BOX HOPPER.
    - ANCHOR PIVOT: FOR RADIAL TRAVEL.
    - UNDERCARRIAGE LIFT: CYLINDER.
    - 7-1/2 HP ELECTRIC / HYDRAULIC POWER PACK.
    - POWER TRAVEL: 2 HP ELECTRIC.
    - PINTLE HITCH: BOLT ON DESIGN.
    - LANDING GEAR: MANUAL PIN ADJUSTMENT.
    - CEMA "C" VS. B IDLERS: 5" DIAMETER STEEL ROLL SEALED FOR LIFE BALL
    BEARINGS.
    - BELT: GRADE 2 3-PLY 330 PIW 3/16" X 1/16" VS. STD.
    - VULCANIZED BELT SPLICE.
    - KING PIN: BOLT ON DESIGN.
    - TRAVEL LIGHTS: BRAKE AND DIRECTIONAL INCLUDES MUDFLAPS.
    - AIR BRAKES.
    - MANUAL SIDE FOLD: HEAD END ONLY.
    - RADIAL TIRES VS BIAS.
    - PAINT: RAL7024 GRAPHITE GREY WITH YELLOW SAFETY GUARDS AND
    RAILINGS.
    - ELECTRICAL SWITCHGEAR PANEL WITH 200- OF MAIN POWER CORD
